Chord Qutest USB System DAC
"Based on the company’s celebrated FPGA DAC architecture from the Hugo 2, it has optical and coaxial digital inputs, plus an isolated USB-B input for computer connection. All this is wrapped in Chord’s superb-quality milled aluminium casework, with analogue outputs adjustable to suit power amps, preamps and headphone amps." EISA Awards Judges
Specifications
Chipset: | Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA |
Tap-length: | 49,152 |
Pulse array: | 10 element pulse array design |
Frequency response: | 20Hz – 20kHz +/- 0.2dB |
Output stage: | Class A |
THD: | <0.0001% 1kHz 3v RMS 300Ω |
THD and noise at 3v RMS: | 117dB at 1kHz 300ohms ‘A’ weighted (reference 2.5v) |
Noise 2.6 uV ‘A’ weighted: | No measurable noise floor modulation |
Channel separation: | 138dB at 1kHz 300Ω |
Weight: | 770g |
Dimensions: | 4.5cm (H) 16cm (W) 8.8cm (D) |
Boxed Weight: | 1500g |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Chord Qutest DAC
Qutest is a standalone DAC whose performance belies its compact dimensions. With DAC architecture based on the award-winning Hugo 2, Qutest offers class-leading digital conversion.
Manufacturers Details:
Qutest is our ‘pure’ DAC (it does not contain headphone amplification or rechargeable batteries like some of its range stablemates) and is designed to improve sound quality in the home. It is the latest evolution of our most affordable standalone DAC, the multi-award-winning 2Qute, which it directly replaces.
Qutest, which is a What Hi-Fi? Star of CES 2018, is based on our award-winning proprietary FPGA technology developed for the class-leading Hugo 2 DAC/headphone amp, giving it proven class-leading technical and sonic performance. Perfectly equipped to bring the benefits our digital technology to a wide range of connected devices, it features a galvanically isolated USB-B, optical and coaxial digital input, giving an instant performance upgrade, plus the ability to modernise ageing digital source components.
The Qutest chassis is all-new, too. It has significantly greater mass than its predecessor and has been precision-machined from solid aircraft-grade aluminium billet. The Qutest PCB nestles within a shallow cavity in the solid aluminium chassis, giving the circuit board greater protection within the casework and additional isolation from external vibration compared to previous designs.
Engineered With Care:
Qutest offers Hugo 2’s proprietary user-selectable frequency-shaping filters and input selection controls, available via two fascia-mounted spheres, introducing useful flexibility. It also features RCA analogue outputs for connection to integrated amplifiers, preamps and headphone amps, plus high-resolution dual-data digital inputs for connection to future Chord Electronics products.
A further new feature is a user-selectable output voltage available in 1, 2 and 3V RMS outputs for flexible connectivity with a wide range of partnering devices.
Pair This With:
Looking to take your Qutest to the next level? There is no better way to house the Qutest system components than with the official Qutest System Stand. Its considered, robust industrial design allows unrestricted access to all connectors and its clever heat-transfer construction helps components to stay cool.
Key Features:
- Materials: Precision machined aluminium casing with polycarbonate buttons and glass viewing portal. Available only in Jett Black.
- Device power supply: 5v 2amp Micro USB
- Tap length filter: 49,152 – 10 element Pulse Array design
-

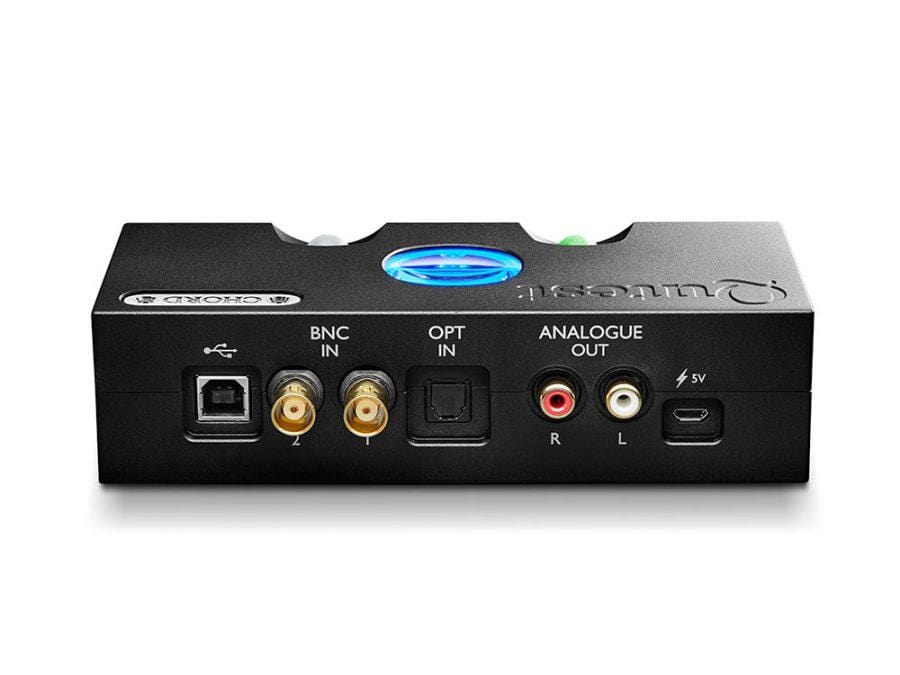

Connectivity (input): USB Type B (White): 44.1kHz to 768kHz – 16bit to 32bit2x BNC Coax (Red): 44.1kHz – 384kHz – 16bit to 32bit
1x Dual data mode input (using both BNC coax inputs together): 44.1kHz to 768kHz – 16bit to 32bit
Optical (Green): 44.1kHz to 96kHz – 16bit to 24bit - Connectivity (output): 1x stereo pair of RCA (Left and Right)
- PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz, 717.6kHz, and 768kHz.
- DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)
- Variable output: Fixed, but selectable between 3v (blue), 2v (green), and 1v (red) via dual press of ‘Filter’ + ‘Input’ upon startup
- Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS
- Digital designer: Rob Watts
- Mechanical designer: John Franks
- Country of manufacture: England
"Based on the company’s celebrated FPGA DAC architecture from the Hugo 2, it has optical and coaxial digital inputs, plus an isolated USB-B input for computer connection. All this is wrapped in Chord’s superb-quality milled aluminium casework, with analogue outputs adjustable to suit power amps, preamps and headphone amps."
