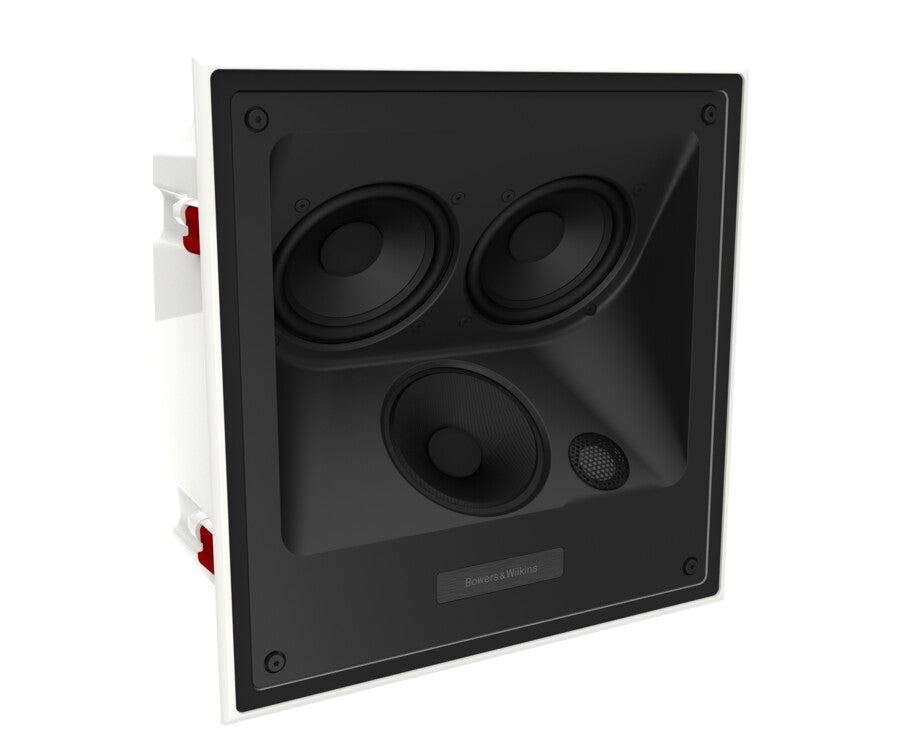

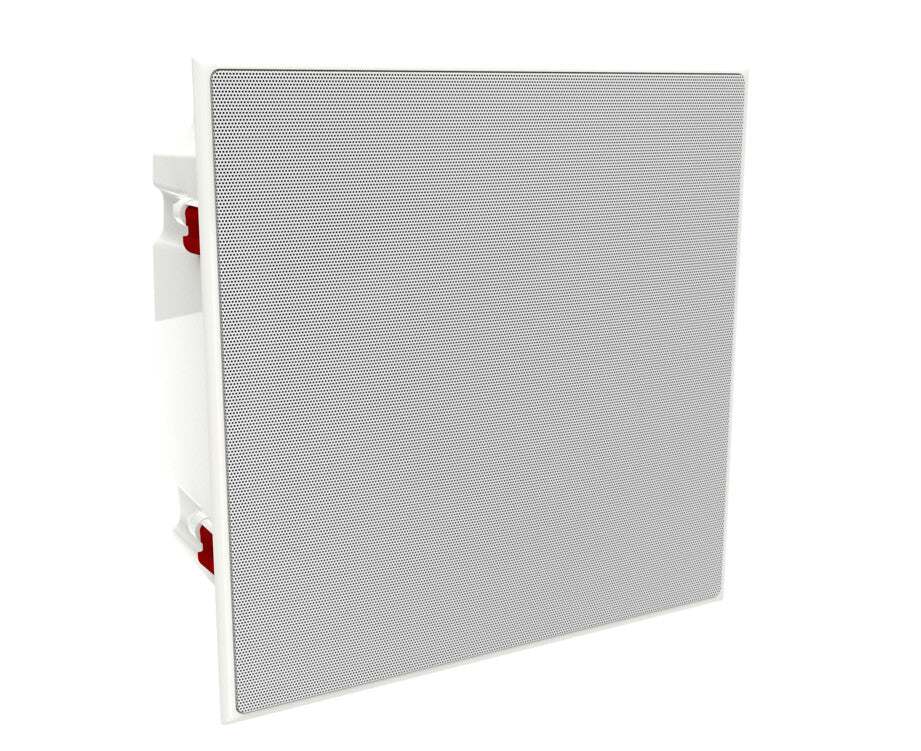

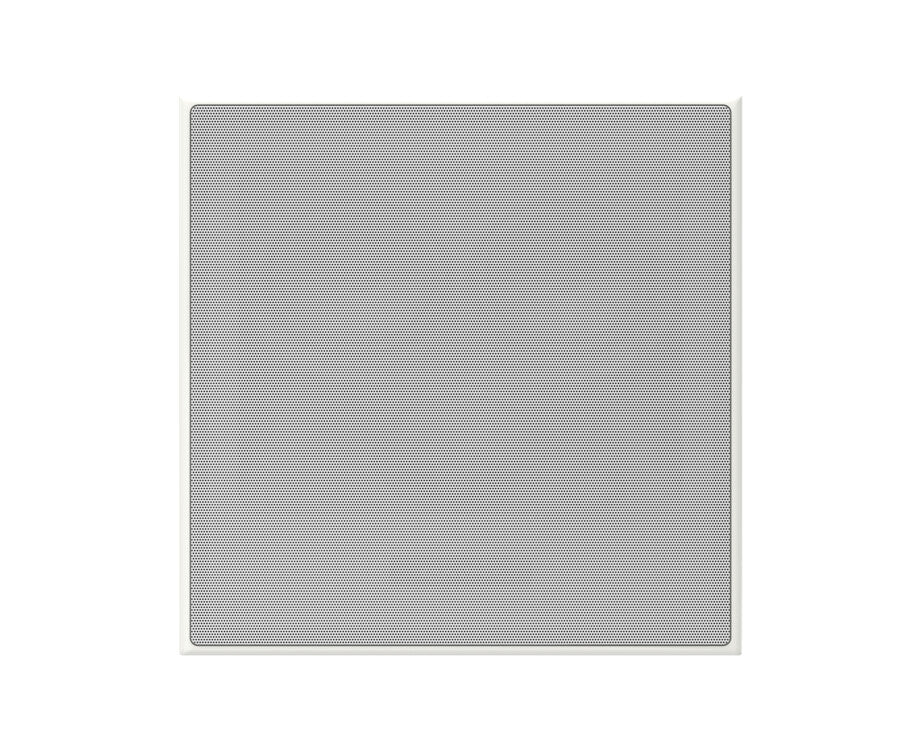

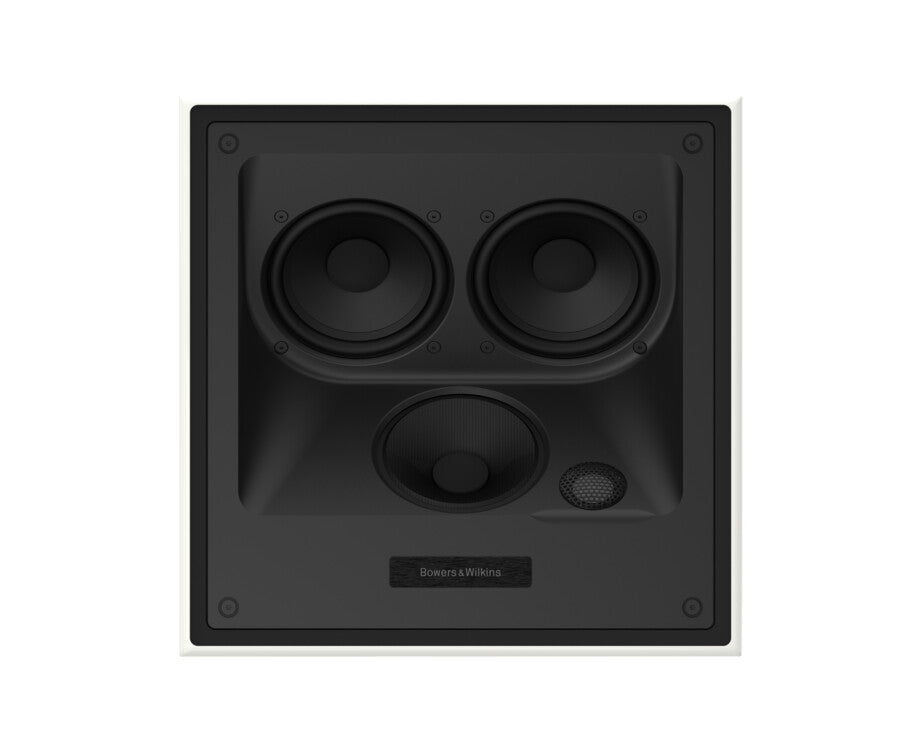

Bowers & Wilkins CCM7.3 S2 3-Way In-Ceiling Speaker
Specifications
Technical Features: | Carbon Dome tweeter Continuum cone FST midrange Aerofoil profile bass cones |
Description: | 3-way in-ceiling system |
Drive units: | 1x ø25mm (1in) Carbon Dome high-frequency 1x ø100mm (4in) Continuum cone FST midrange 2x ø130mm (5in) Aerofoil profile bass |
Frequency range (-6dB): | -6dB at 52Hz and 33kHz |
Frequency Response -3dB: | 55Hz - 28kHz ±3dB |
Sensitivity: | 90dB spl (2.83Vrms, 1m) |
Harmonic distortion: | 2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 33kHz<0.5% 120Hz - 33kHz |
Nominal impedance: | 8Ω (minimum 3.1Ω) |
Recommended amplifier power: | 25W - 200W into 8Ω on unclipped programme |
Dimensions (H x W x D): | 355 x 355 x 194.5 mm |
Cut-Out Dimensions (H x W x D): | 332mm x 332mm x 8mm protrusion |
PMK: | 7C |
Net weight: | 9 kg Inc Accessories |
Finishes: | Back box: WhiteGrille: White |
Warranty: | 5 Years |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Bowers & Wilkins CCM7.3 S2 3-Way In-Ceiling Speaker
The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.
Key Features:
- 25mm(1in) Carbon Dome tweeter
- 100mm (4in) FSTTM Continuum cone midrange
- 2 x 130mm (5in) Aerofoil Profile bass drivers
- Easy installation
