Bowers & Wilkins CCM683 2-Way In-Ceiling Speaker
Specifications
| Description: | 2-way in-ceiling system |
| Drive units: | 1x ø25mm (1 in) NautilusTM swirl loaded aluminium dome tweeter1x ø200mm (8in) blue Aramid Fibre cone bass/midrange |
| Frequency range (-6dB): | 35Hz – 50kHz |
| Sensitivity SPL (2.83V, 1m): | 88dB |
| Nominal impedance (min): | 8Ω (4.5Ω) |
| Recommended amplifier power: | 25 – 130w |
| Frame Diameter: | 290mm |
| Depth (behind surface): | 133mm |
| Cut-Out Diameter: | 250mm |
| Protrusion: | 4mm |
| Pre-mount Kit: | C8 |
| Back Box: | 6C |
| Finishes: | Grille: White |
| Warranty: | 2 Years |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Bowers & Wilkins CCM683 2-Way In-Ceiling Speaker (Single or Pair)

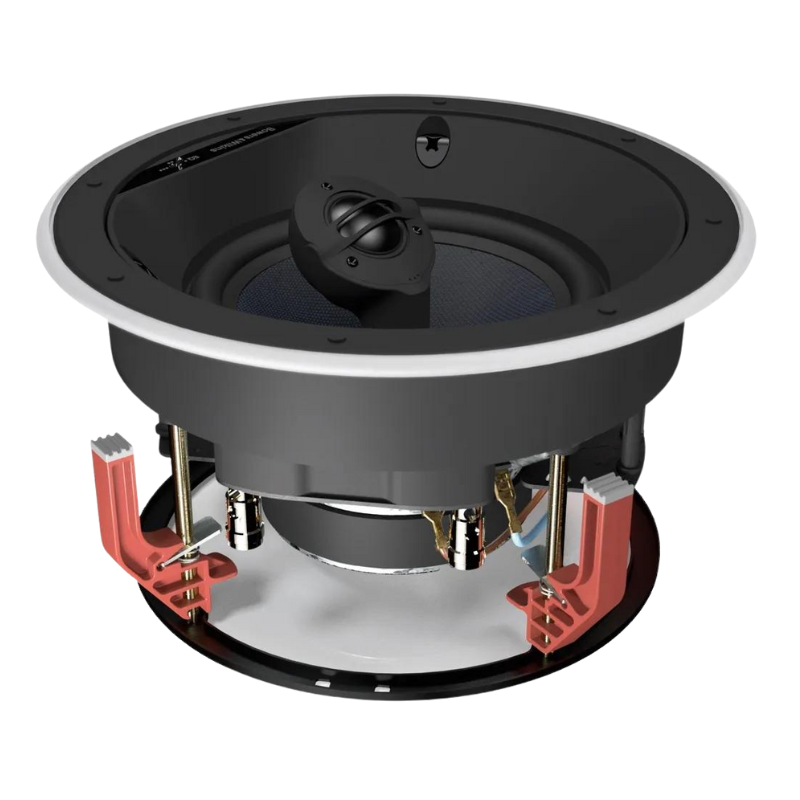

The CCM683 is a true high performance ceiling-mount speaker. The speaker features a 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis provides extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound.
Key Features:
- 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver
- Aluminium tweeter in a neat circular die-cast chassis
- Three-position EQ switch for a better off-axis response
- Remarkably clear and dynamic sound
