Audio-Technica AT-XP5 Cartridge
Specifications
| Frequency Response: | 20 - 18,000 Hz |
| Channel Separation: | 20 dB at 1kHz |
| Vertical Tracking Angle: | 20° |
| Vertical Tracking Force: | 2.0 to 4.0 g (standard 3g) |
| Recommended Load Impedance: | 47,000 ohms |
| Coil Inductance: | 1.0 H (1 kHz) |
| Output Voltage: | 5.5 mV (mV at 1 kHz, 5 cm/sec) |
| Output Channel Balance: | 2.0 dB |
| Stylus Shape: | Elliptical |
| Cantilever: | Carbon Fibre Reinforced ABS |
| Static Compliance: | 20 x 10-6 cm/dyne |
| Dynamic Compliance: | 6.0x10-6cm/dyne (100Hz) |
| Mounting: | Half-inch |
| Dimensions (HxWxD): | 17.2 × 17.8 x 28.3mm |

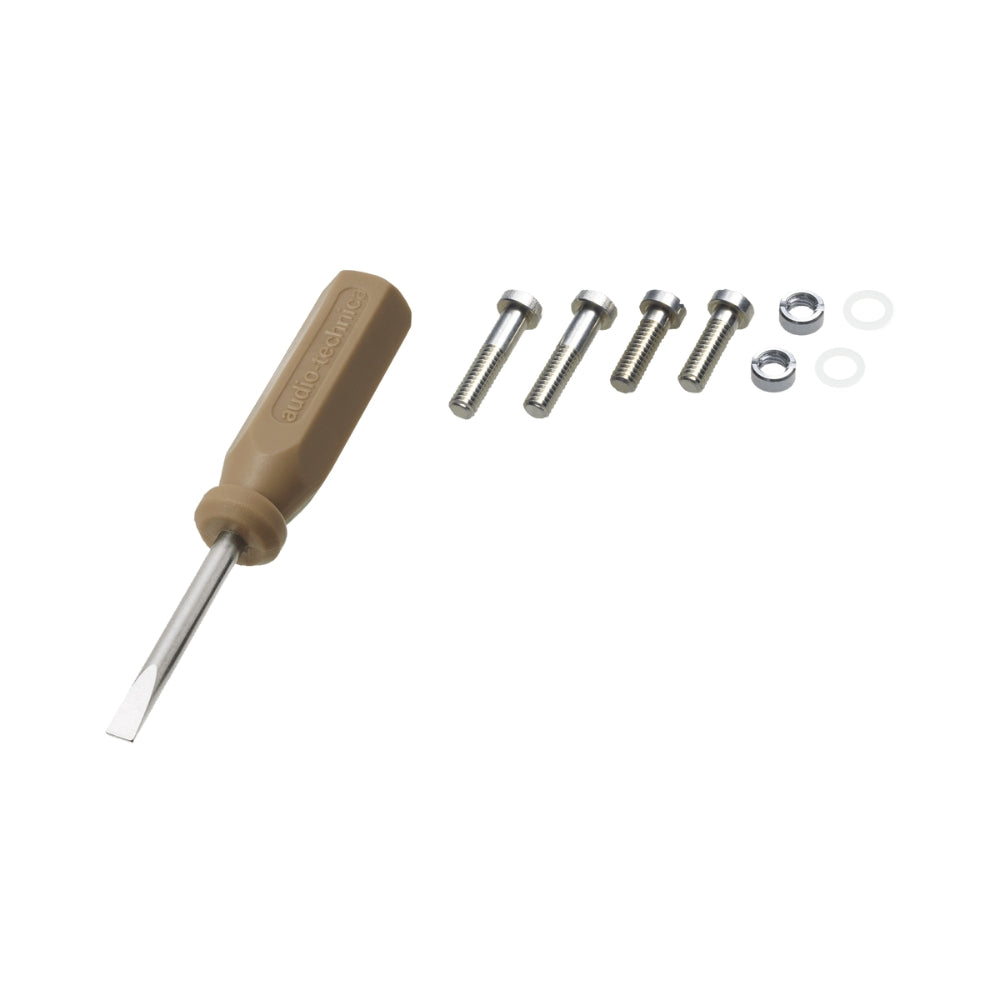

| Accessories Included: | Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2, Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1 |
| Recommended Load Capacitance: | 100-200 pF |
| Replacement Stylus: | ATN-XP5 |
| Stylus Size: | 0.3 x 0.7 mil |
| Type: | VM Dual Magnet |
| Weight: | 6.2g |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Audio-Technica AT-XP5 DJ Cartridge
The AT-XP5 is designed for the needs of DJs, featuring a PPS/glass fibre body and a tracking force spanning 2-4g. With an output level of 5.5mV, plus a 0.3x0.7mil elliptical bonded stylus for precise tracking, this cartridge ensures optimal audio reproduction. Plus, it is crafted with maximum visibility of the stylus tip.
Manufacturers Details:
The AT-XP5 features a highly sensitive elliptical diamond stylus that provides exceptional audio reproduction with high-frequency clarity and detailed bass response. This stylus design allows for precise tracking and reduces record wear, ensuring longevity and preserving the life of your vinyl collection.
The cartridge has a rugged and durable construction, designed to withstand the rigours of DJing. It has a sturdy housing and a robust cantilever, making it resistant to vibrations and ensuring consistent playback, even in loud club environments.
The AT-XP5 DJ Cartridge is compatible with standard turntable headshells, making it easy to install and replace on most DJ turntables. It has a low-resonance, high-output design, which means it can deliver a strong and clear signal to your DJ mixer or audio interface, allowing for optimal sound quality and precise mixing.
Key Features:
Exceptional Sound Quality
The Audio-Technica AT-XP5 DJ Cartridge features an elliptical diamond stylus that delivers excellent audio reproduction with high-frequency clarity and detailed bass response. This ensures that your vinyl records sound vibrant and true to their original recordings.
Durable and Reliable
Designed for the demanding DJ environment, the AT-XP5 is built with rugged construction to withstand vibrations and heavy use. It has a robust cantilever and a sturdy housing that enhances durability, ensuring consistent playback even in challenging conditions.
Precise Tracking and Low Record Wear
The cartridge's elliptical diamond stylus and optimised tracking force enable precise tracking of the record grooves, minimising distortion and reducing record wear. This not only ensures accurate playback but also extends the lifespan of your vinyl collection.
