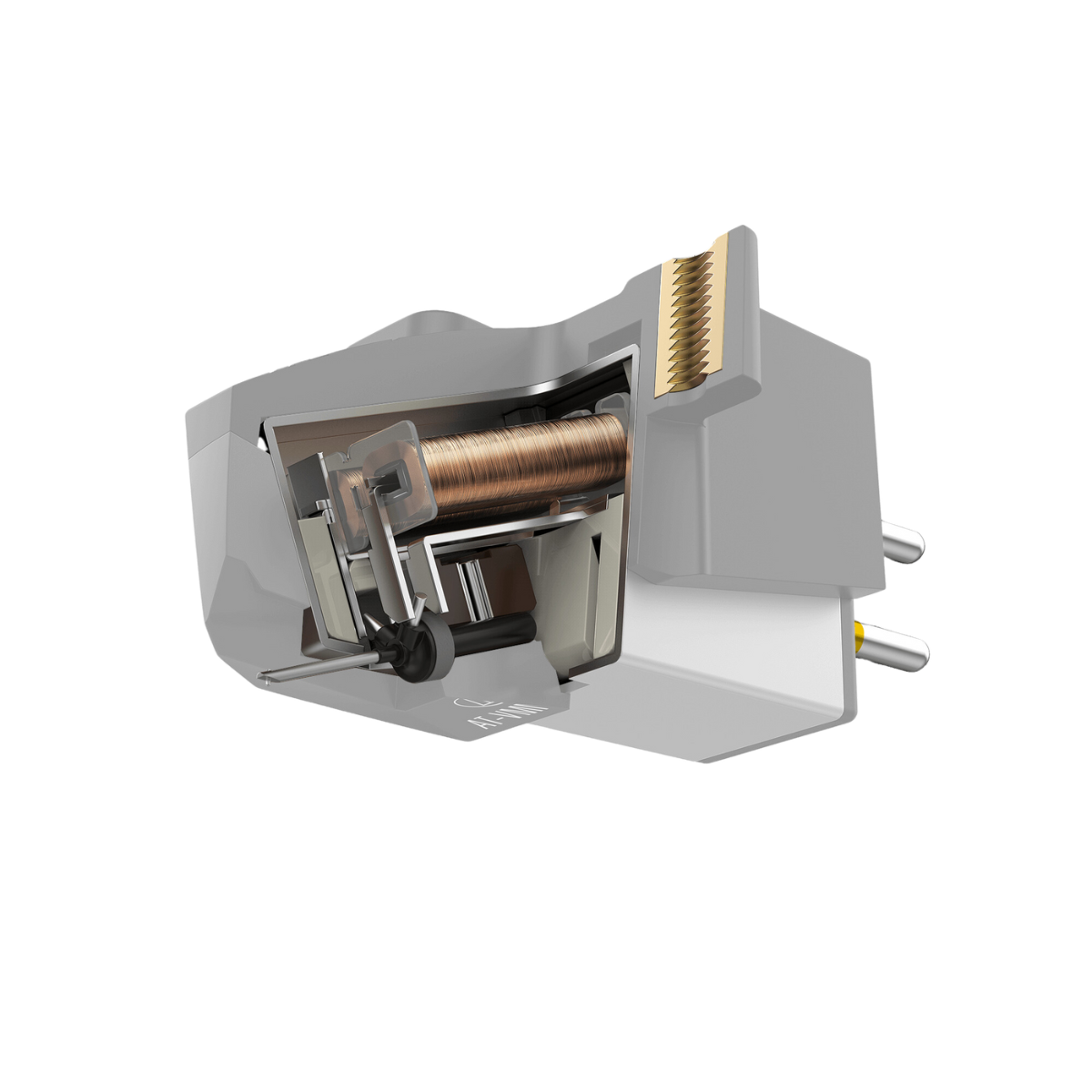

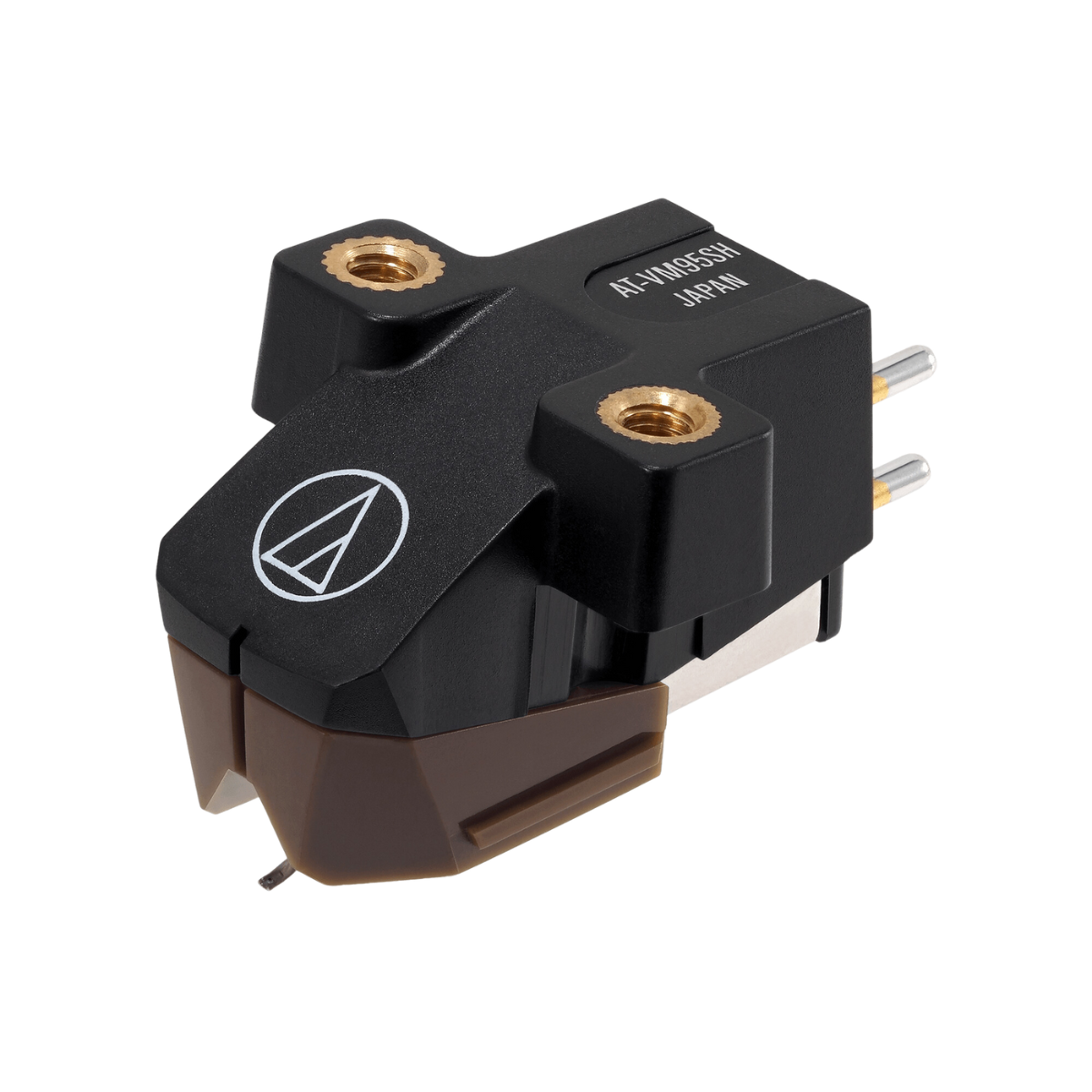

Audio-Technica AT-VM95SH/H PNP Cartridge
Specifications
Frequency Response | 20 - 25,000 Hz |
Channel Separation | 23 dB (1 kHz) |
Vertical Tracking Angle | 23° |
Vertical Tracking Force | 1.8 to 2.2g (2.0g standard) |
Stylus Construction | Nude Square Shank |
Recommended Load Impedance | 47,000 Ω |
Coil Impedance | 3.3 kΩ (1 kHz) |
DC Resistance | 485 Ω |
Coil Inductance | 550 mH (1 kHz) |
Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
Output Channel Balance | 1.5 dB (1 kHz) |
Stylus Shape | Shibata |
Cantilever | Aluminium Pipe |
Static Compliance | 20 x 10 – 6 cm / dyne |
Dynamic Compliance | 10 x 10 – 6 cm / dyne (100 Hz) |
Mounting | 1/2” centres |
Dimensions | 21.2 × 21.4 × 62.4 ( H x W x D mm) |
Recommended Load Capacitance | 100-200 pF |
Replacement Stylus | AT-VMN95SH |
Stylus Size | 2.7 x 0.26mil |
Type | VM Stereo Dual Magnet |
Weight | 15.5 g |
Wire Used for Coil | T.P. Copper |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Audio-Technica AT-VM95SH/H PNP Cartridge
Sale price$379.00
Regular price$379.00 (/)
Audio-Technica AT-VM95ML/H PNP Cartridge
Features

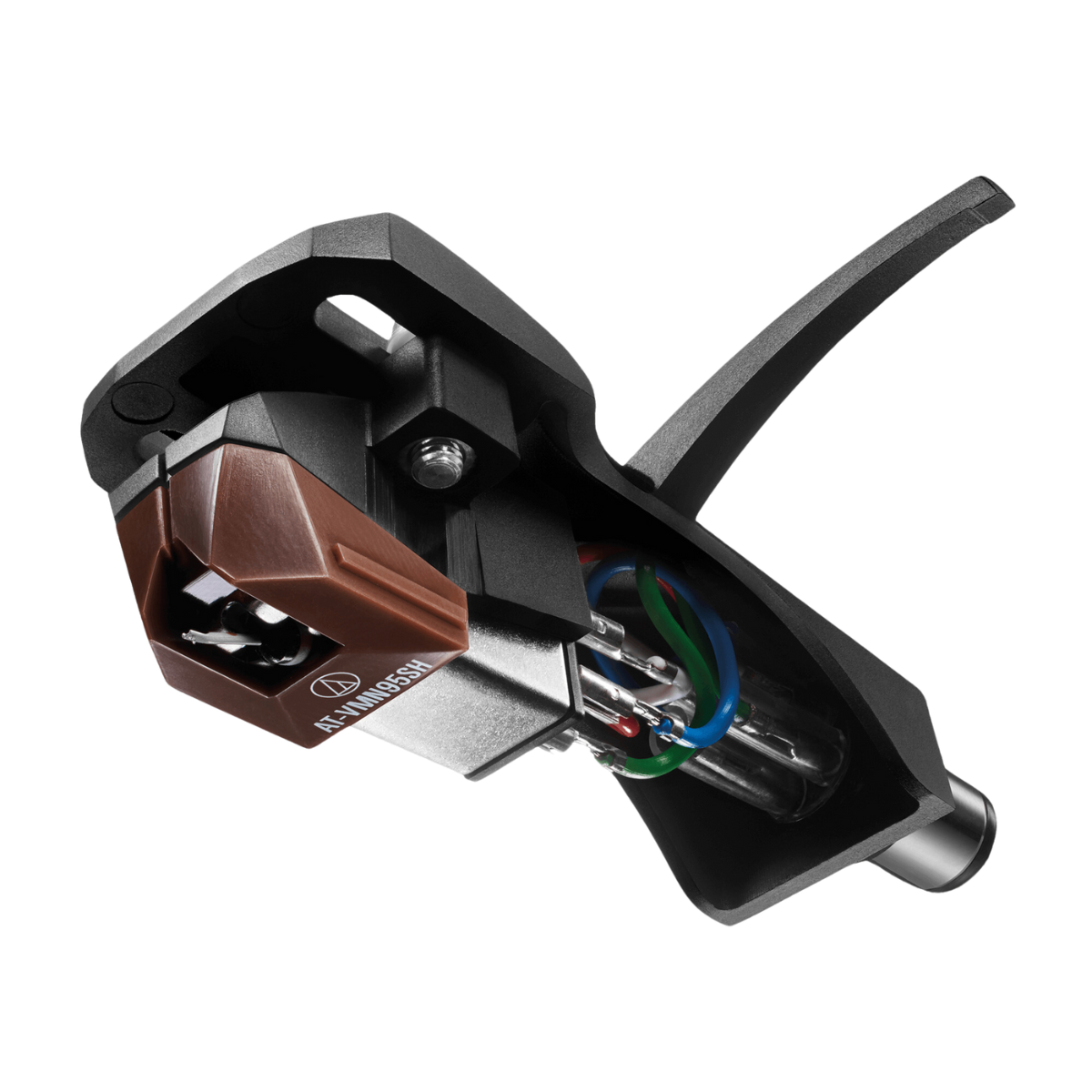

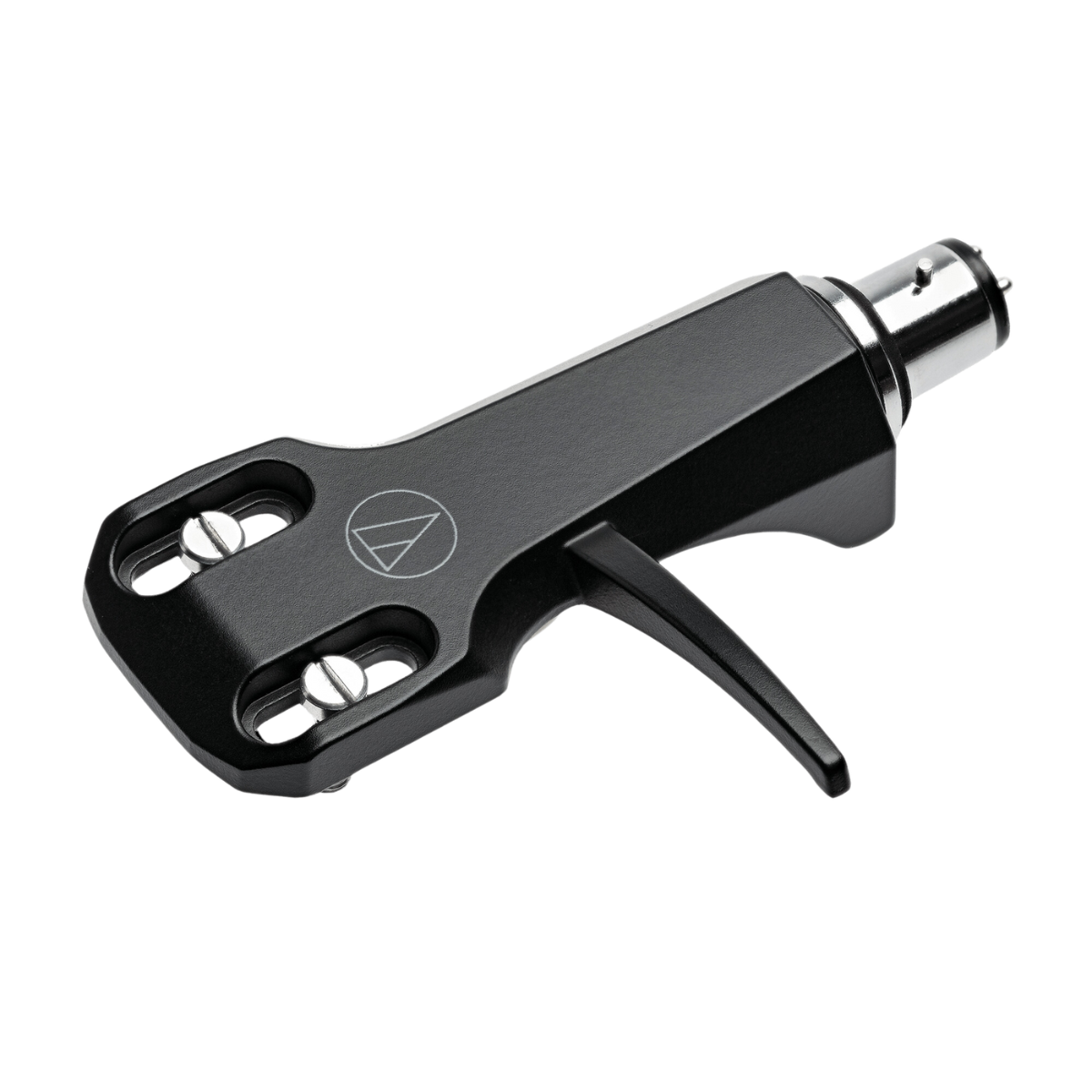

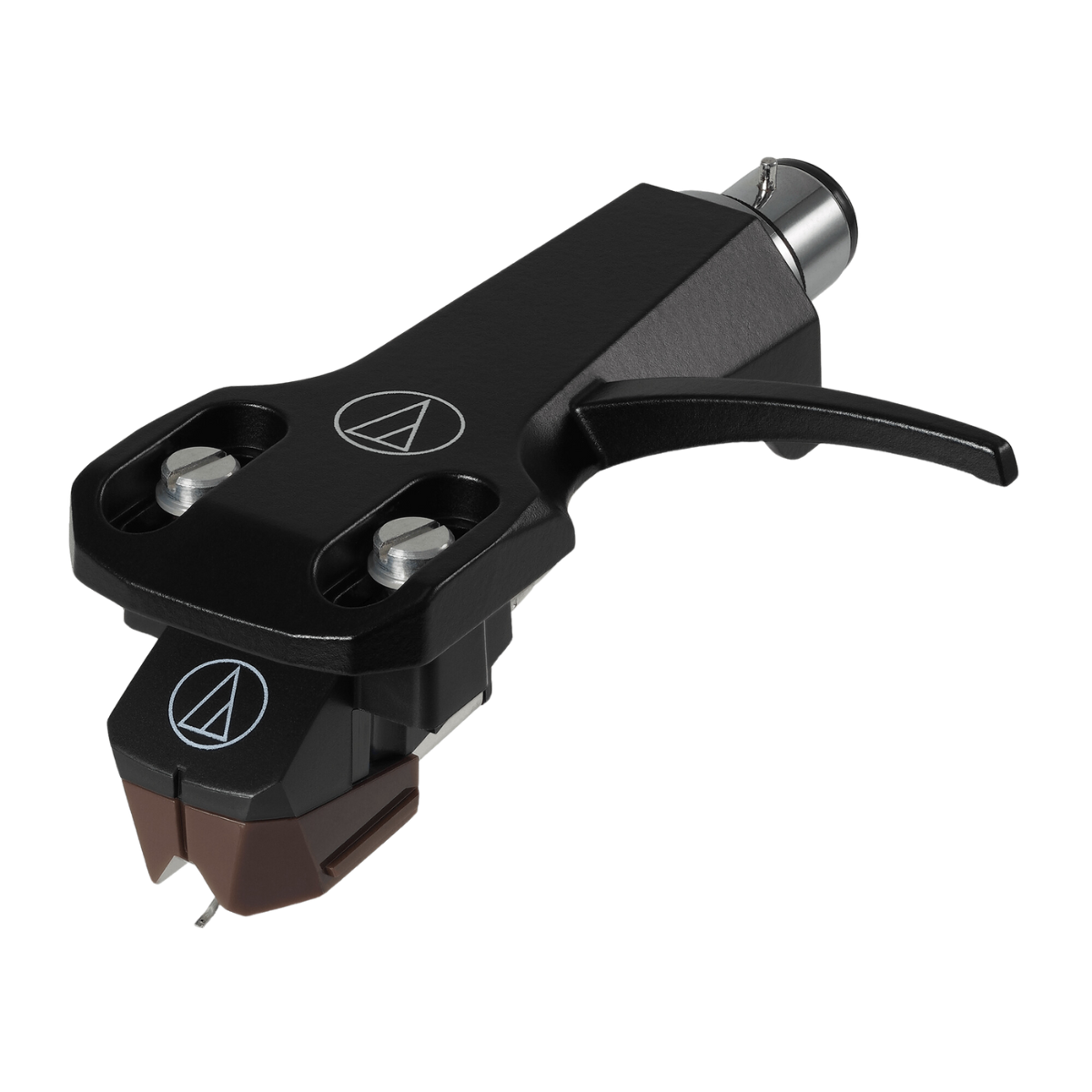

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell.
