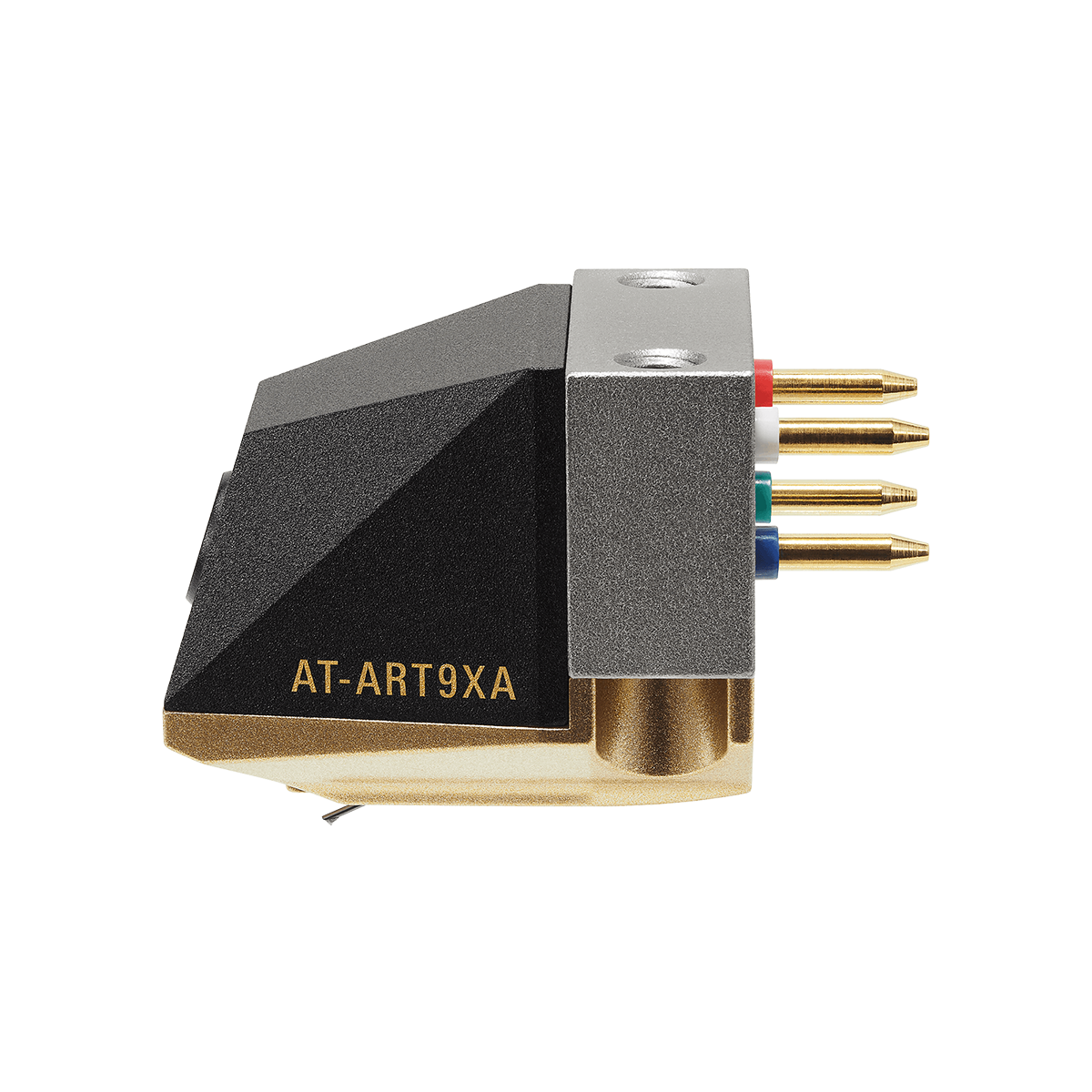

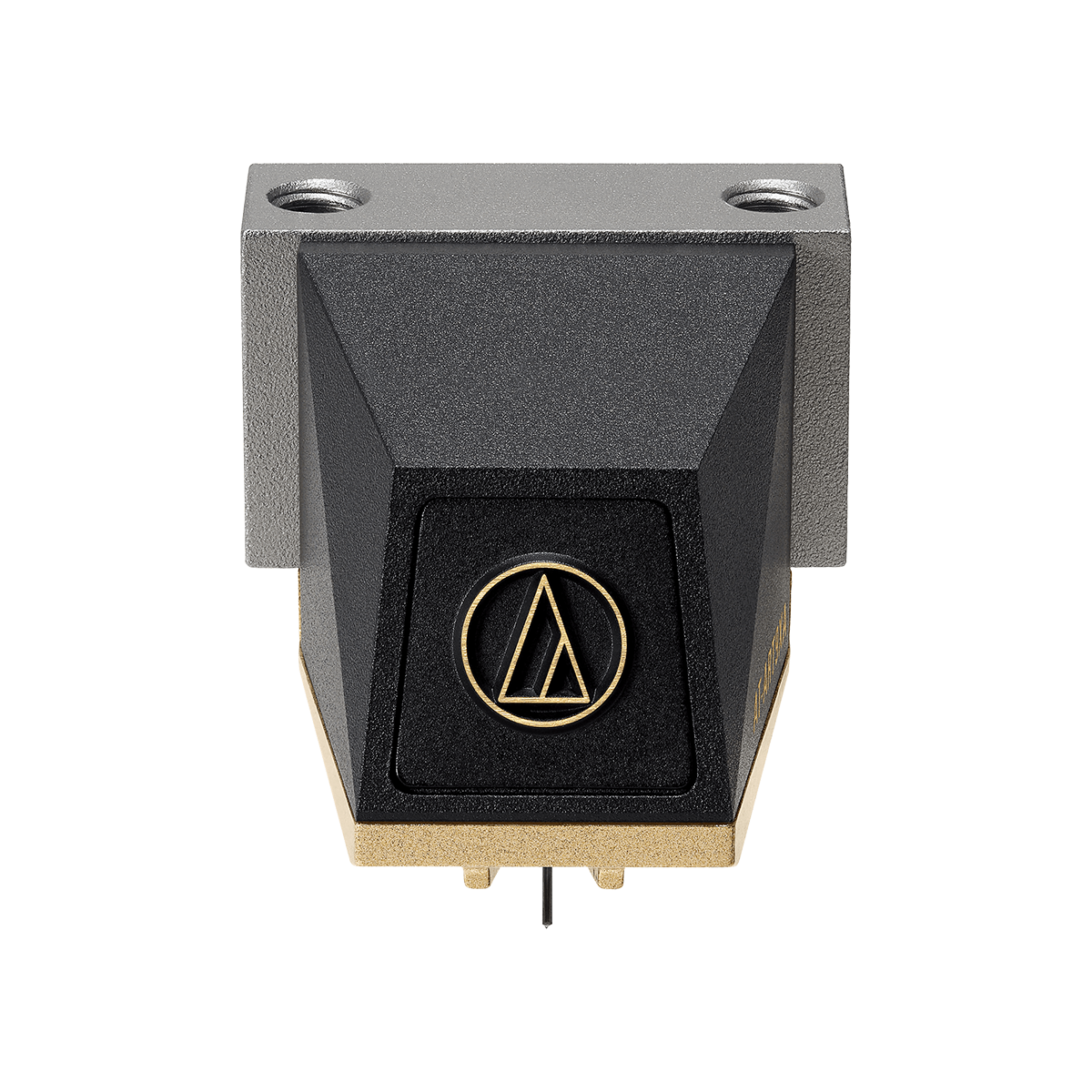

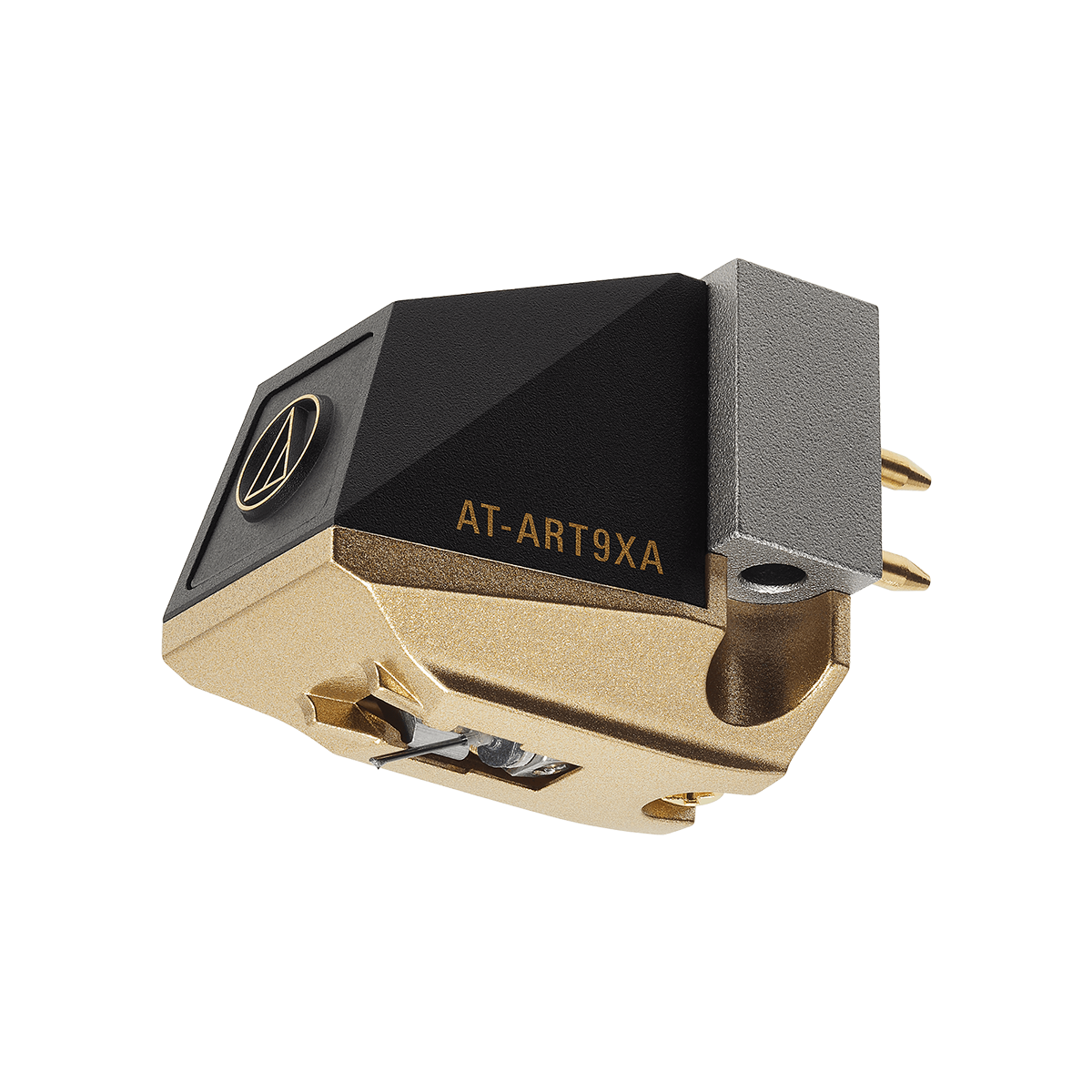

Audio-Technica AT-ART9XA Dual Moving Coil Cartridge (Non-Magnetic Core)
Specifications
Frequency Response | 20 to 50,000 Hz |
Channel Separation | 30 dB (1 kHz) |
Vertical Tracking Angle | 20° |
Vertical Tracking Force | 1.6 to 2.0 g (1.8 g standard) |
Stylus Construction | Nude |
Recommended Load Impedance | Min. 100 ohms (when head amplifier connected) |
Coil Impedance | 12 ohms (1 kHz) |
DC Resistance | 12 ohms |
Coil Inductance | 2.5 μH (1 kHz) |
Output Voltage | 0.2 mV (1 kHz, 5 cm/sec.) |
Output Channel Balance | 0.5 dB (1 kHz) |
Stylus Shape | Shibata |
Cantilever | 0.28 mm diameter solid boron |
Static Compliance | 20 x 10-6 cm/dyne |
Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) |
Mounting | Half-inch |
Cartridge Weight | 8.5 g (0.30 oz) |
Dimensions | 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D |

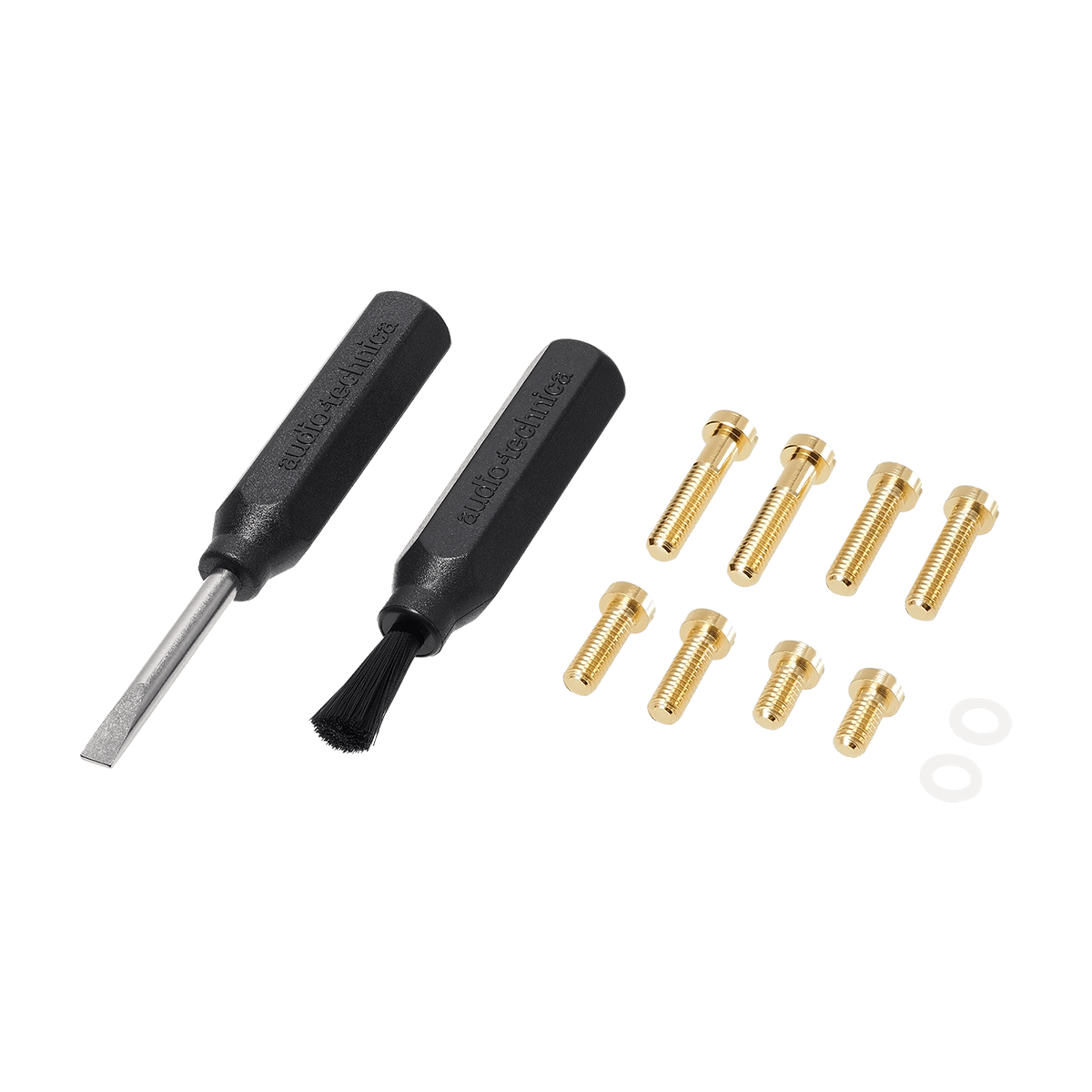

Accessories Included | Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm x 2, 12.0 mm x 2); protector; brush |
Threaded Hole | M2.6 x 2 |
Notes | Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
Warranty
Shipping & Returns
We offer free shipping on any order over $150. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Audio-Technica AT-ART9XA Dual Moving Coil Cartridge (Non-Magnetic Core)
The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.
Features
- Non-magnetic core moving coil cartridge offers superior spatial representation

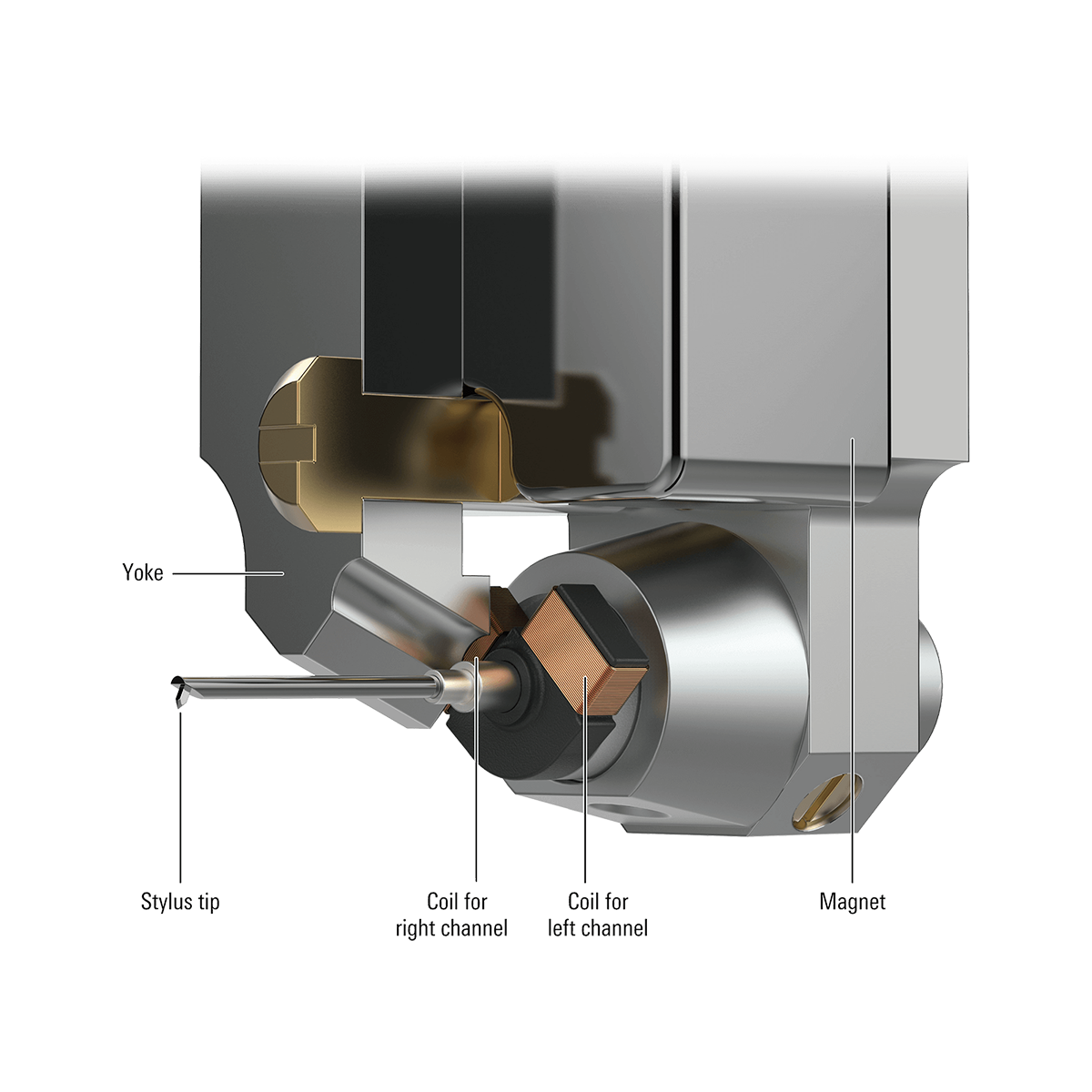

- Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
- Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
- Neodymium magnet and permendur yoke significantly increase magnetic energy
- Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)
- PCOCC coils ensure high-fidelity transmission
- Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
- Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
- Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
