Audiolab 6000A Integrated Amplifier
An amplifier remains the beating heart of any high-performance audio system, but in 2020 a truly versatile integrated amp needs to cover many bases – digital and analogue sources, wireless connectivity for portable devices, a phono stage to cater for vinyl playback, amplification for headphones as well as speakers… That’s a lot to pack in, whilst keeping performance high and the price tag affordable – and yet, that’s exactly what the 6000A delivers.
Curious about what's in the box? Check out our unboxing video!

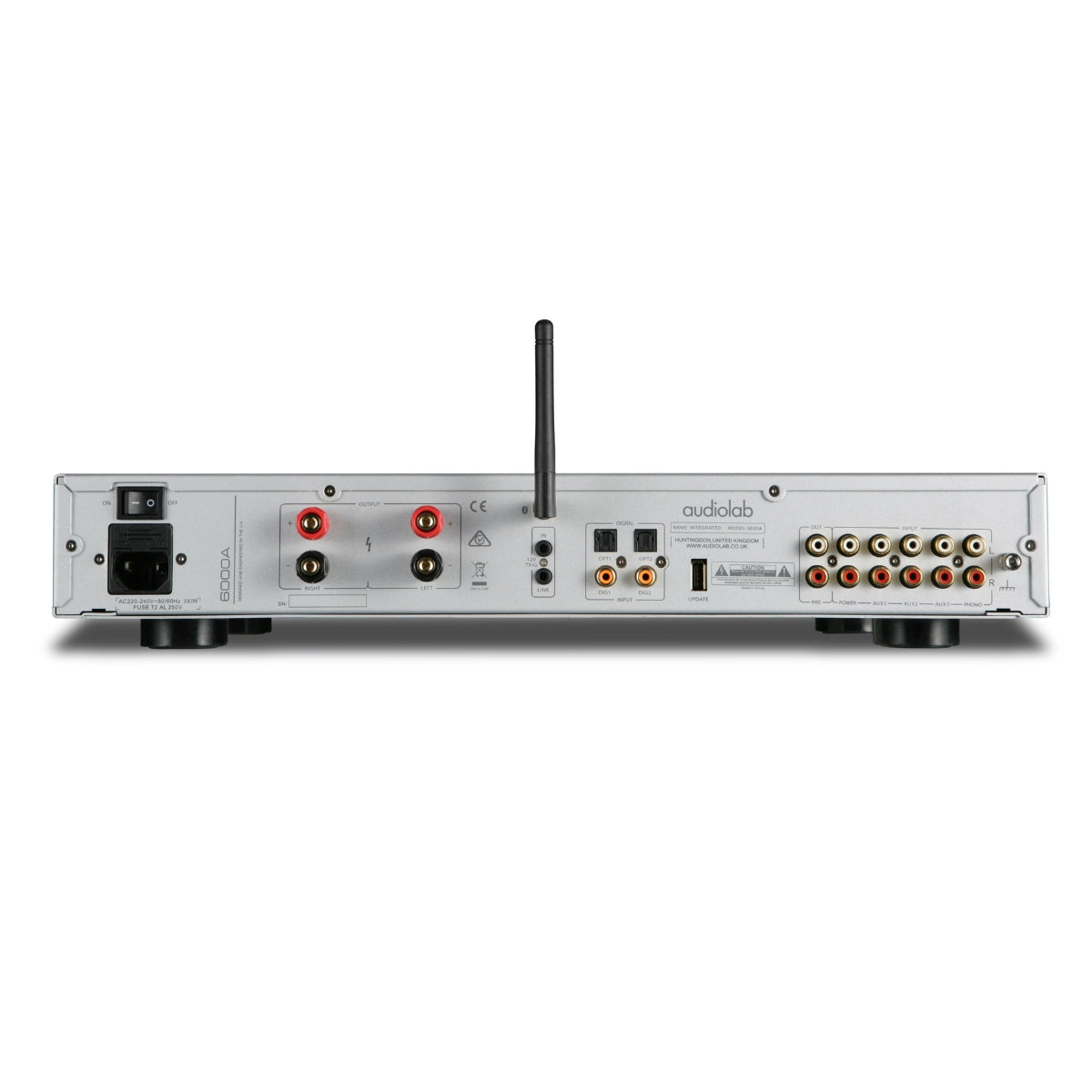

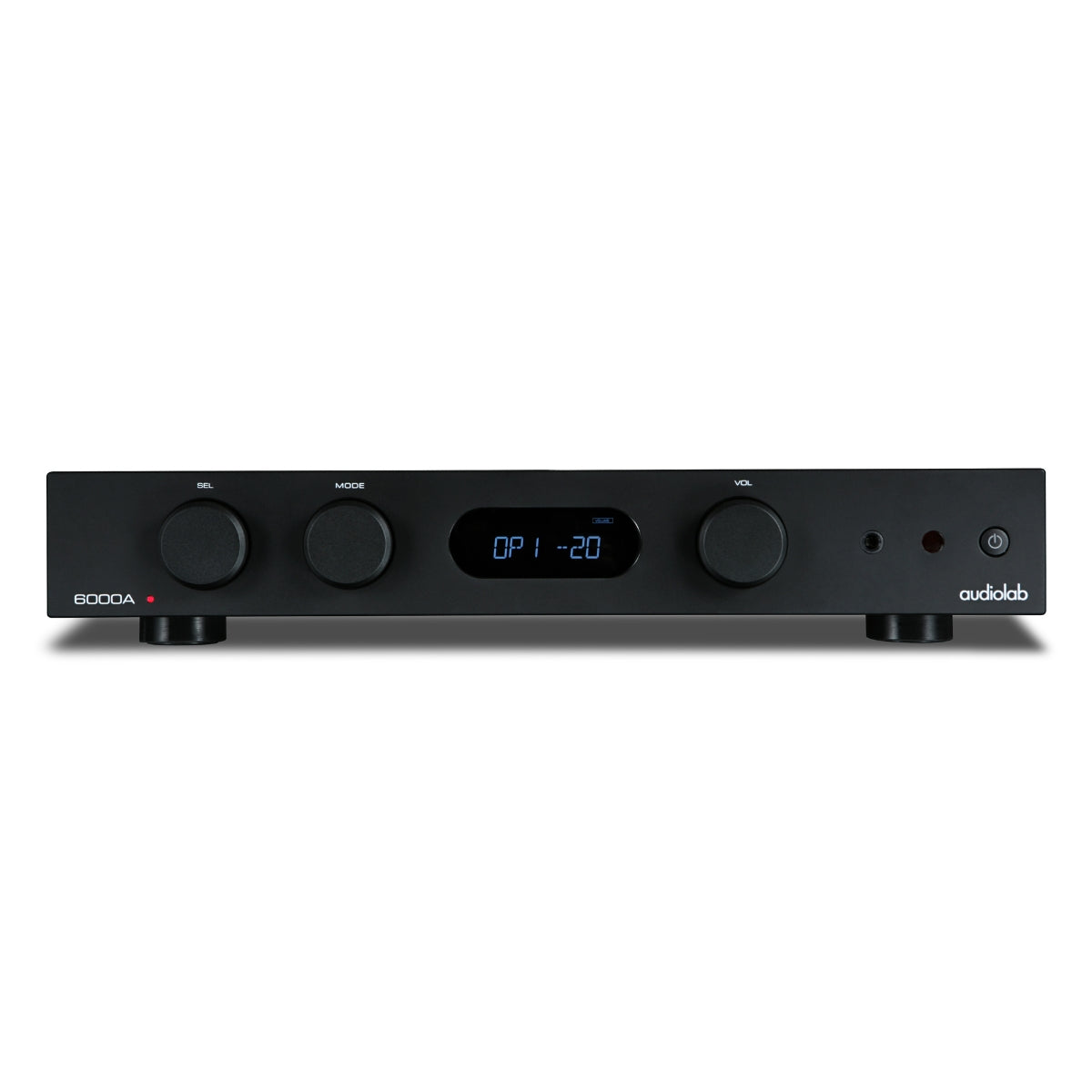

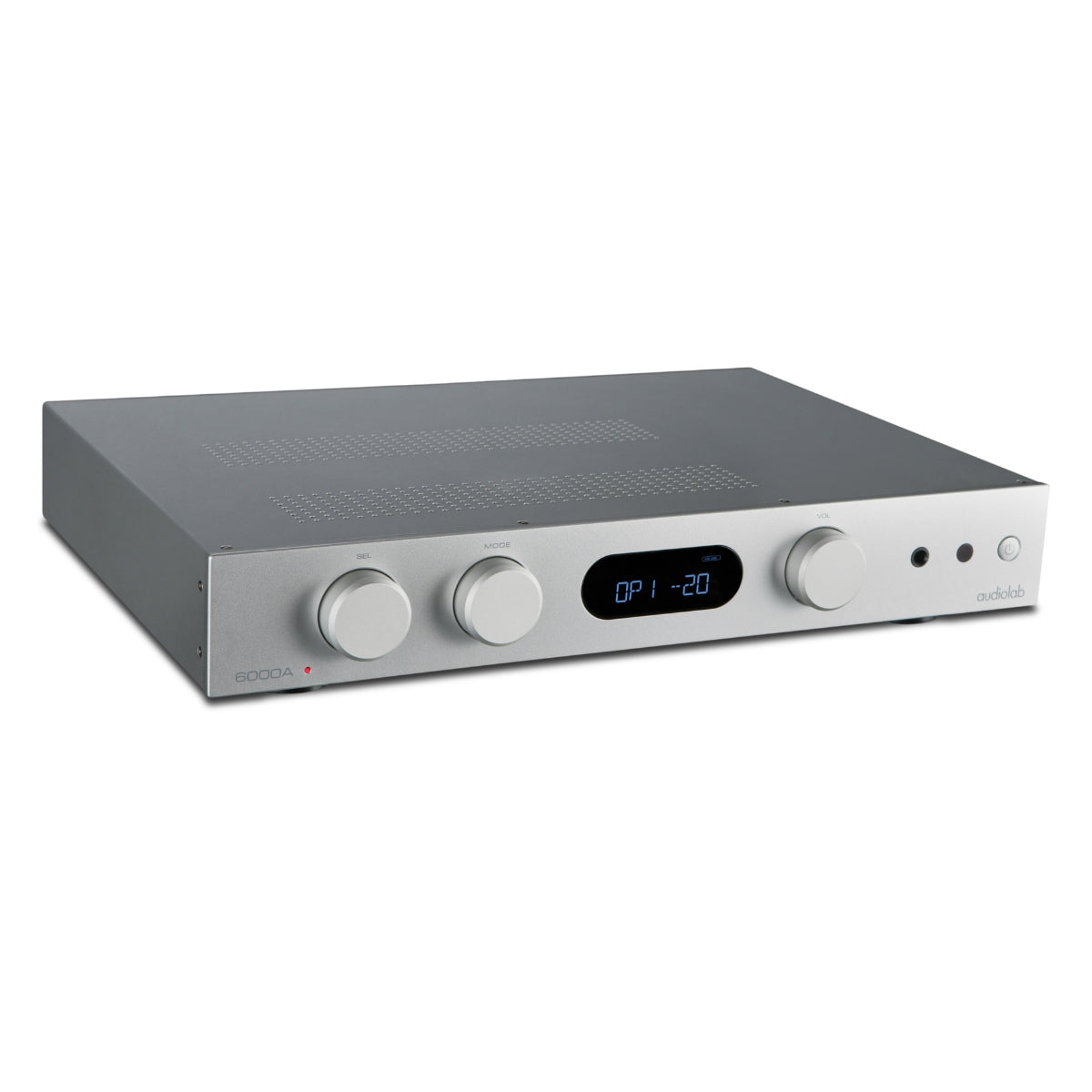

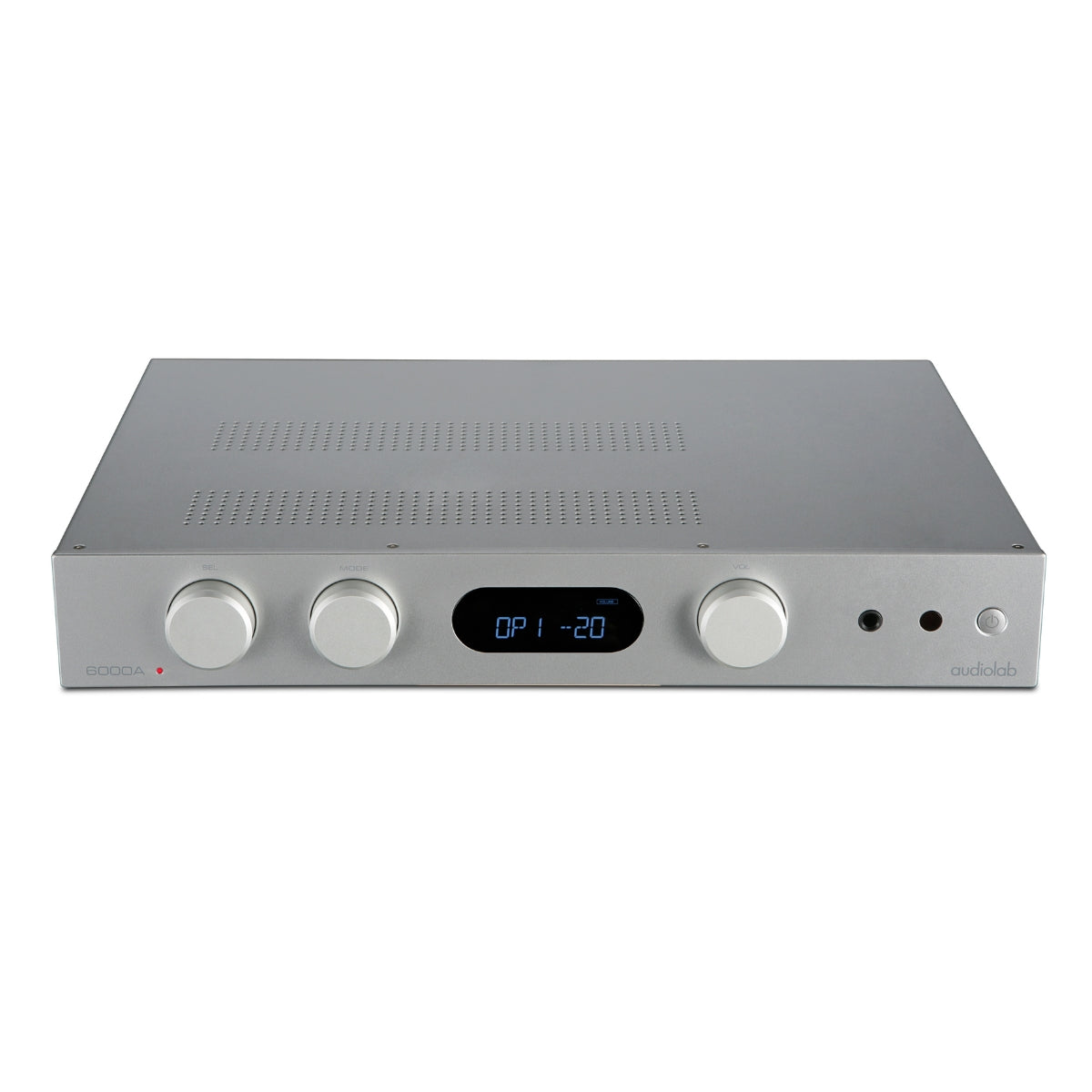

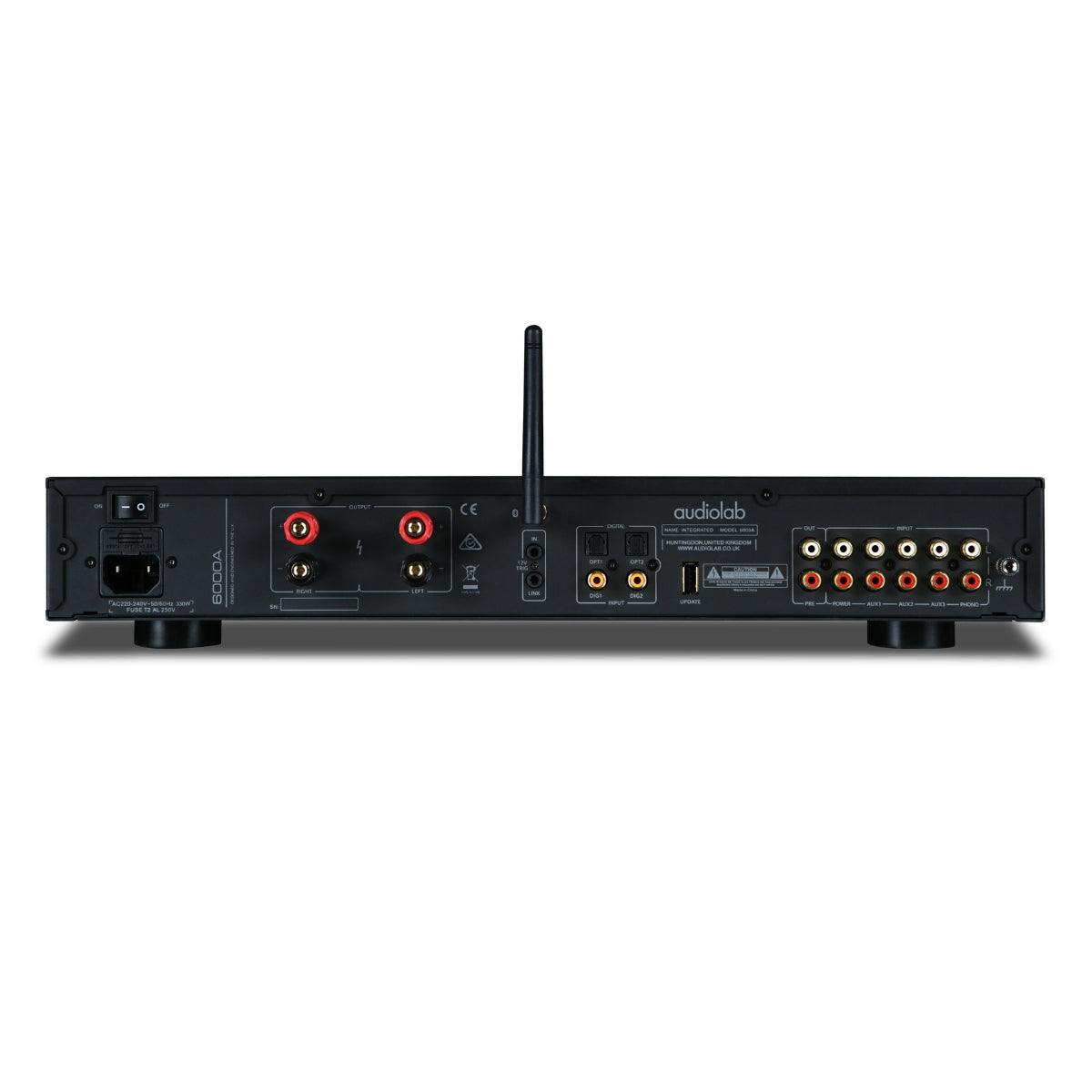

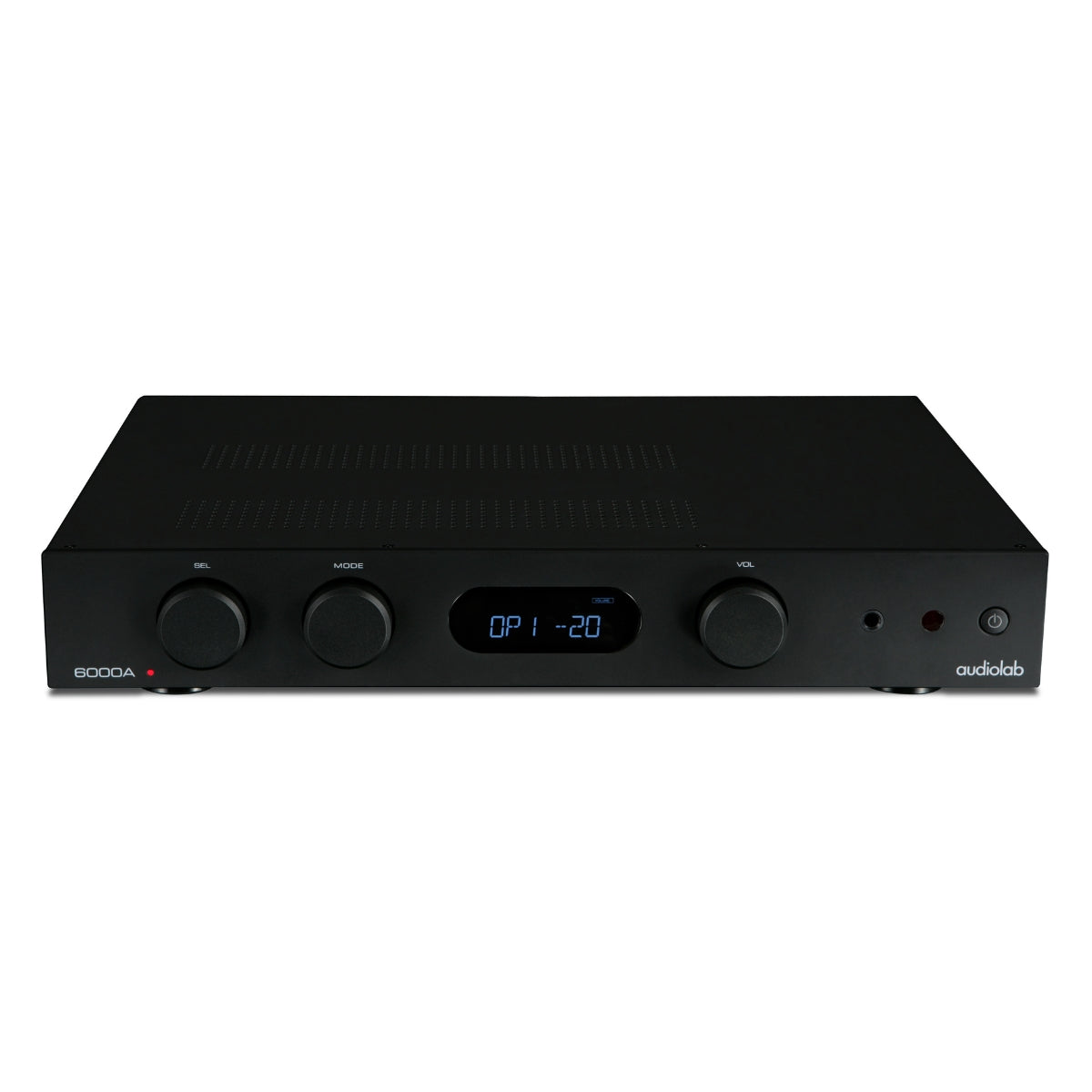

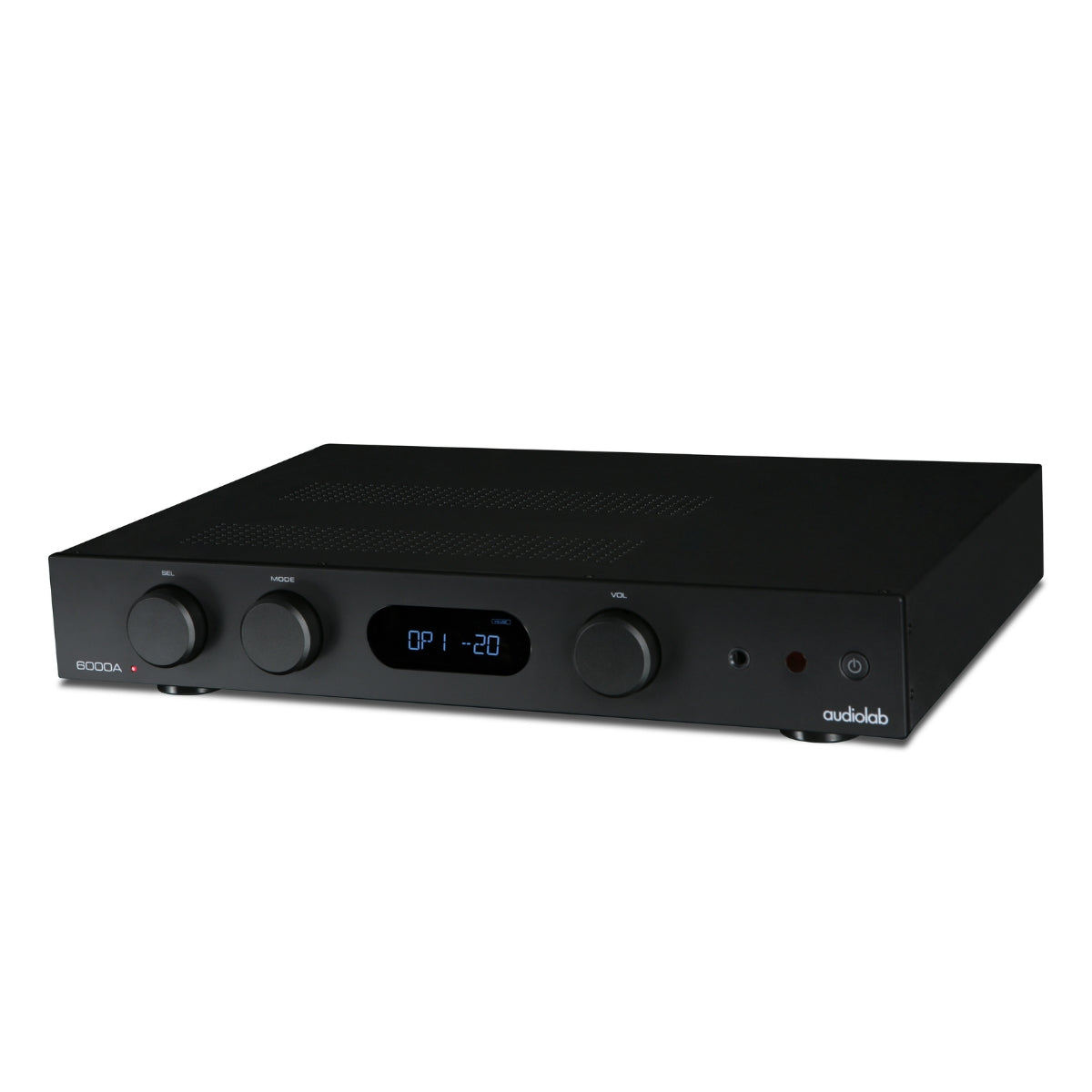

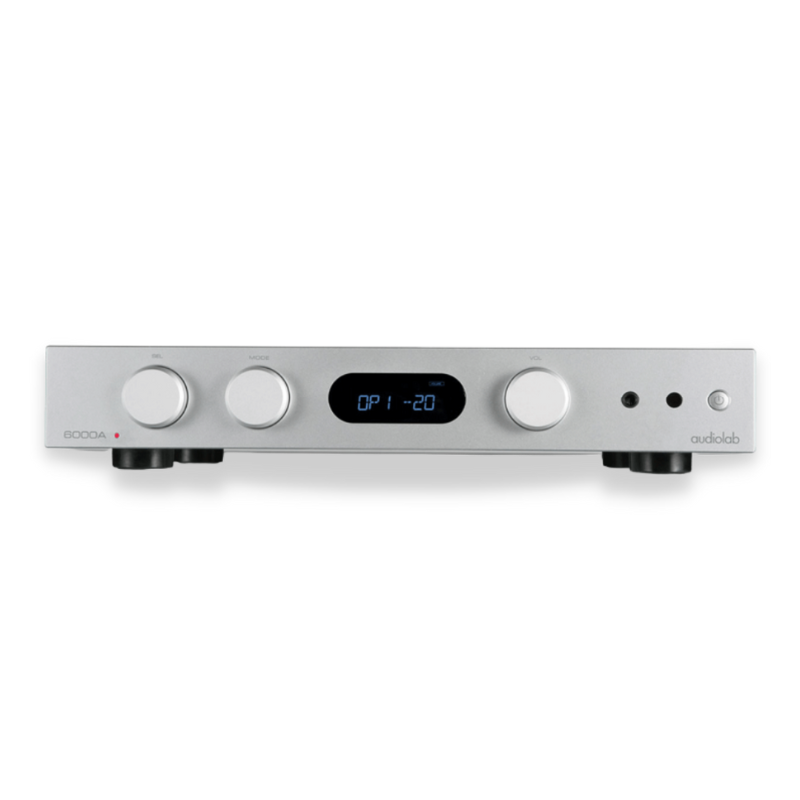

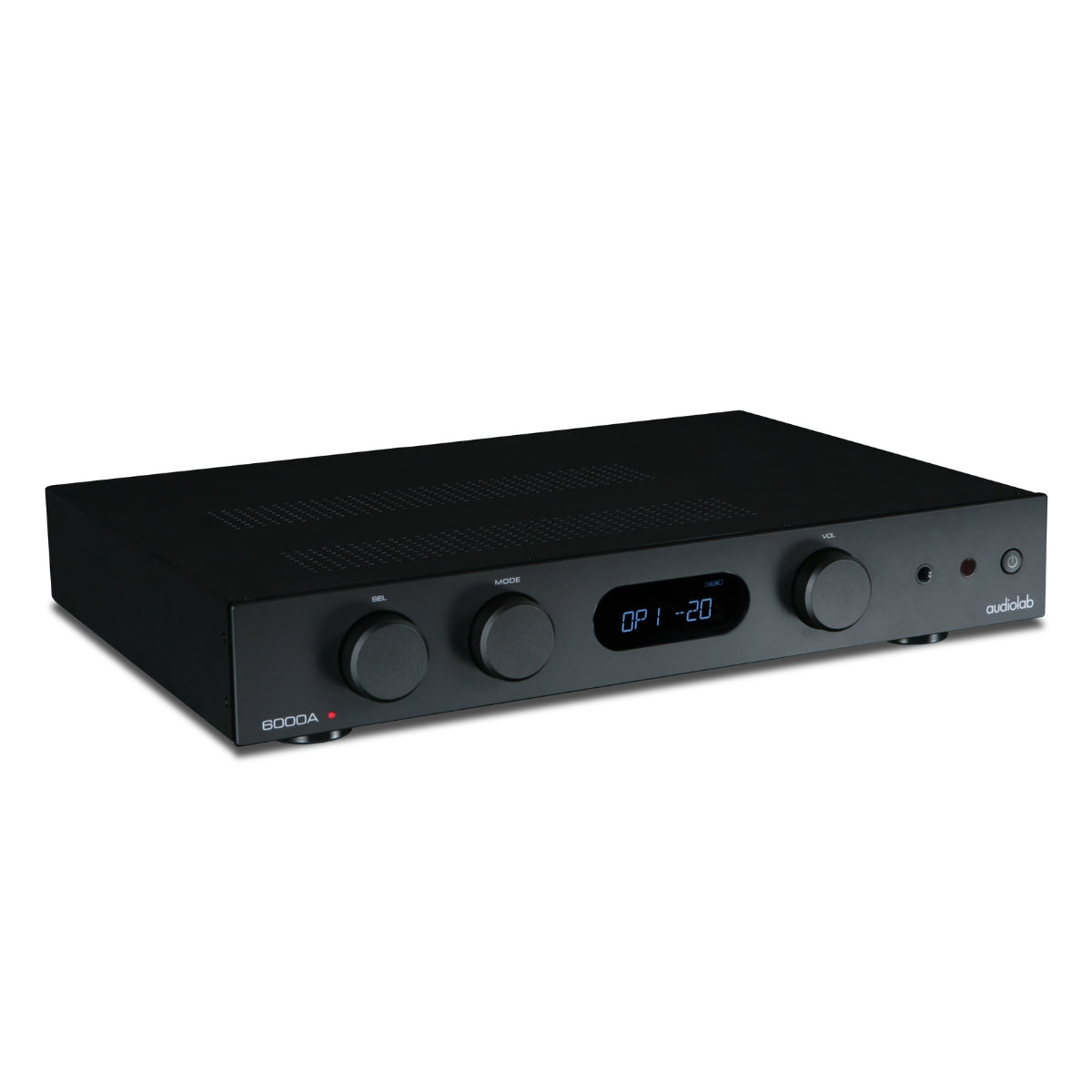

Outwardly, the 6000A bears strong resemblance to the 8300A with its rotary controls and large, central OLED display. Unlike its costlier, analogue-only sibling, it incorporates high-quality D/A conversion, enabling digital sources to be connected directly without an external DAC. It supplies four digital inputs, three line-level analogue inputs, an input for a turntable, wireless connectivity via Bluetooth and a dedicated headphone amp, in addition to its ability when driving loudspeakers.
Much effort has been made to ensure the 6000A’s digital circuitry delivers the level of quality one might expect of a high-performance standalone DAC. As ever, Audiolab has turned to the ES9018 Sabre32 Reference chip family to perform D/A conversion, utilising ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.
No company knows more about making the most of this technically excellent, but challenging, DAC technology than Audiolab.
Engineered With Care:

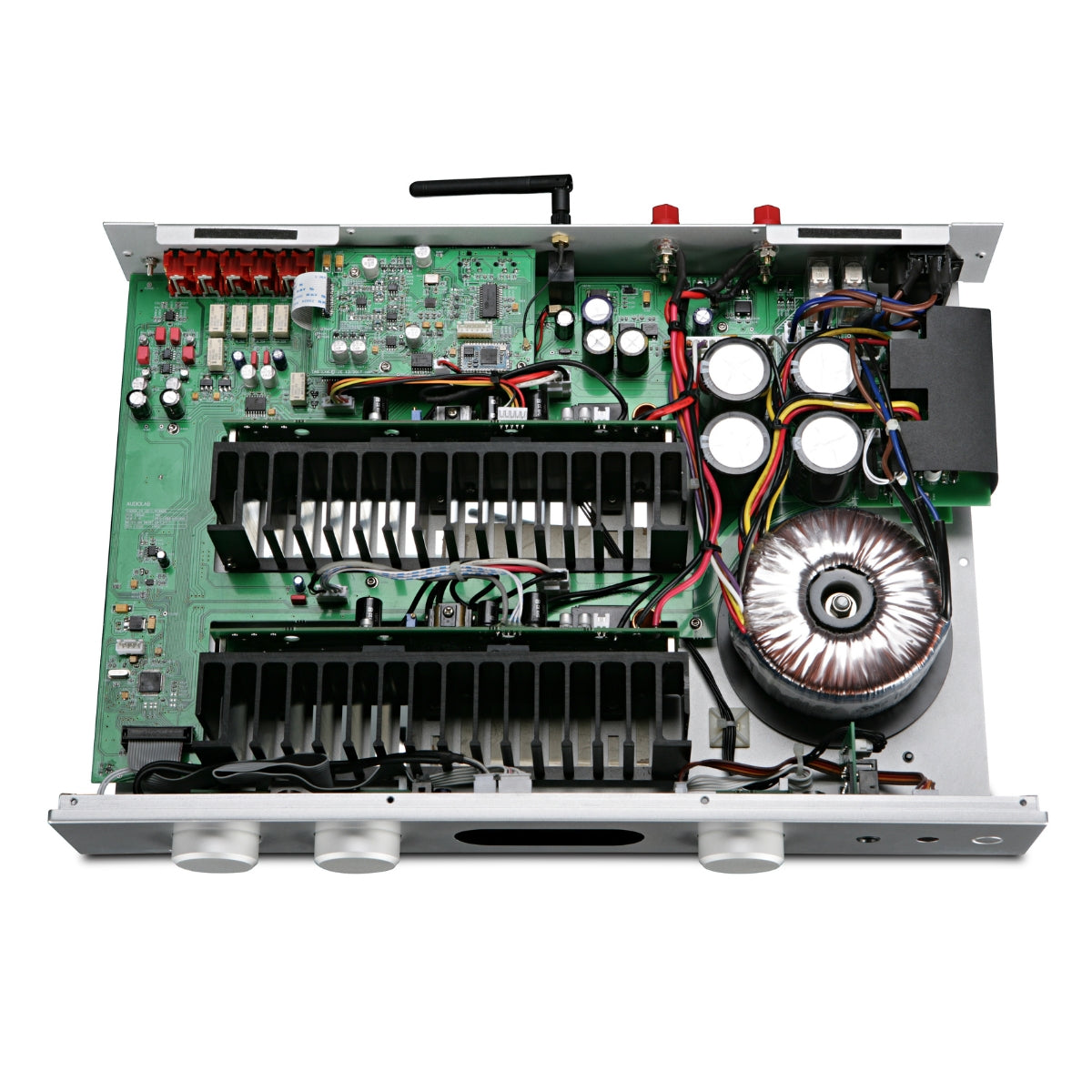

A substantial 200VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
The preamp section is kept as simple as possible to maintain signal purity, with line input signals passing to a precision analogue volume stage. The latter covers the range from -80dB to +8dB in steps of 2dB and 1dB (step resolution increases with volume position). Much effort has gone into the physical layout of the 6000A’s circuitry, protecting the sensitive preamp section from noise interference.
Want to make it easy?

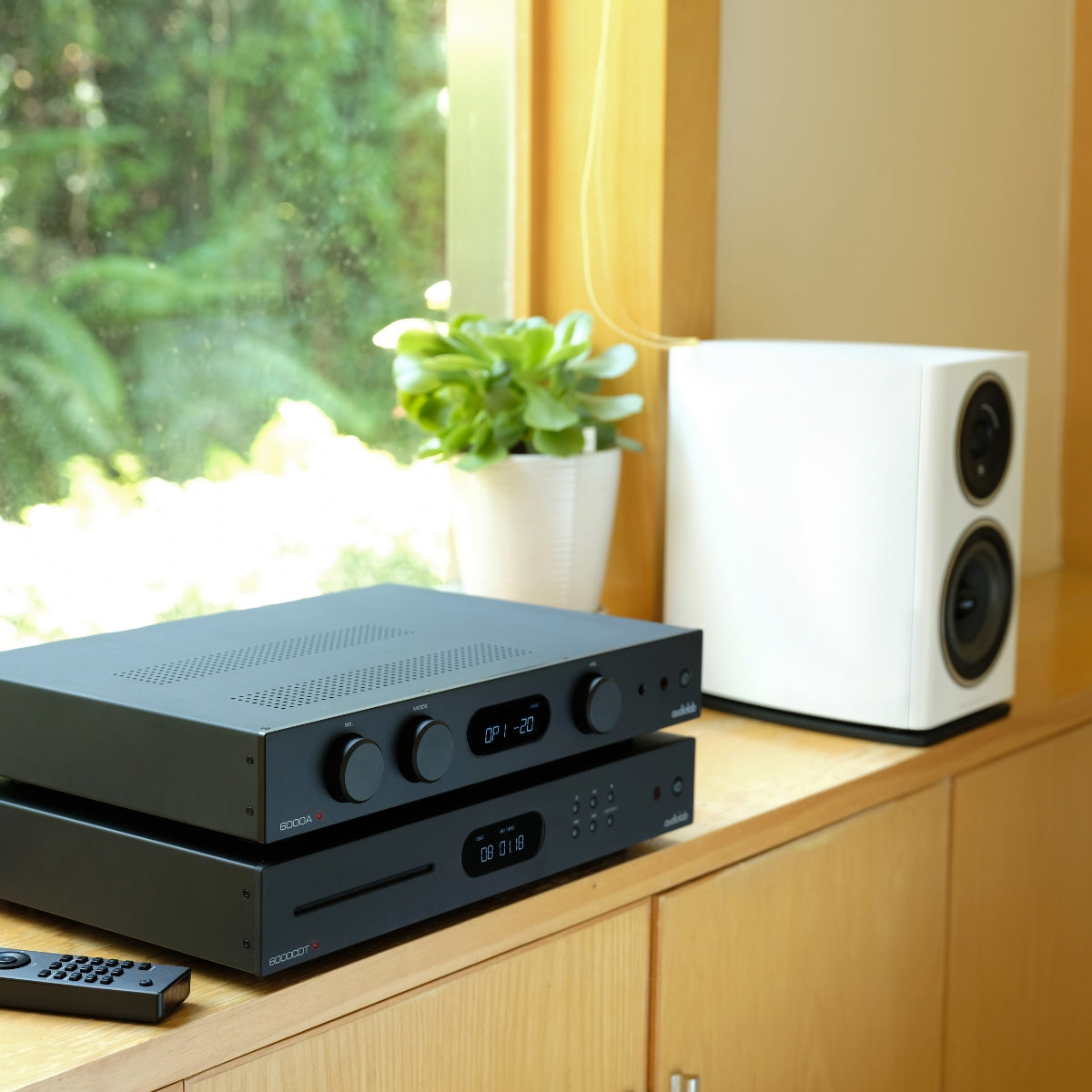

We have bundled this together with the Wharfedale Denton 85th Anniversary Bookshelf Speakers and a Pro-Ject X1 Turntable or Audiolab 6000CDT Transport as part of two fantastic packs to make getting started that much easier! Don't miss out on our "The Vintage" Analogue or "The Vintage" Digital Packs.
- High quality digital to analogue conversion
- Dedicated Headphone Amplifier
- Premium feeling fit and finish
|Gain (max.):||+8dB (Line)
+55dB (Phono MM)
|Input Sensitivity:||720mV (Line, Volume = 0dB)
3.1mV (Phono MM, Volume=0dB)
|Input Impedance:||10K (Line)
47K//100pF (Phono MM)
|Total Harmonic Distortion (THD):||< 0.0004% (Line, 1KHz @ 2V, Volume = 0dB)|
|Frequency Response:||20Hz-20kHz (+/-0.1dB)|
|Output Voltage:||2.3V max. (Volume = 0dB)|
|Signal-to-Noise Ration (S/N):||> 110dB (Line, A-weighted)
>76dB (Phono MM, A-weighted)
|D to A converter:||ES9018K2M|
|Total Harmonic Distortion (THD):||< 0.0006% (1kHz @ 0dBFS)|
|Output level (0dBFS, 1KHz):||2.05V|
|Max. Sampling Frequency:||192kHz|
|Signal-to-noise ratio (S/N):||> 112dB (A-weighted)|
|Digital Filters:||Fast Roll-off , Slow Roll-off , Minimum Phase|
|Power Amplifier Section|
|Rated Max. Power Output:||2 X 50W (8Ω, THD<1%)
2 X 75W (4Ω, THD<1%)
|Frequency Response:||20Hz-20kHz (+/-0.3dB)|
|Total Harmonic Distortion (THD):||<0.003% (1kHz @ 40W/8Ω)|
|Signal-to-Noise ratio (S/N):||> 110dB (A-weighted)|
|Max. Output Current:||9A|
|Total Harmonic Distortion (THD):||< 0.01% (1kHz, 50mW)|
|Standby Power Consumption:||<0.5W|
|Power Requirements:||240V ~ 50 - 60Hz
230V ~ 50 - 60Hz
115V ~ 50 - 60Hz
100V ~ 50 - 60Hz
|Dimensions (mm) (W x H x D):||445 x 65.5 x 300|
|Carton Size (mm) (W x H x D):||512 x 467 x 146|
