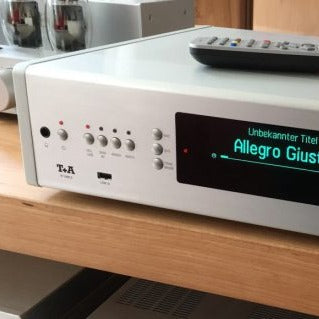

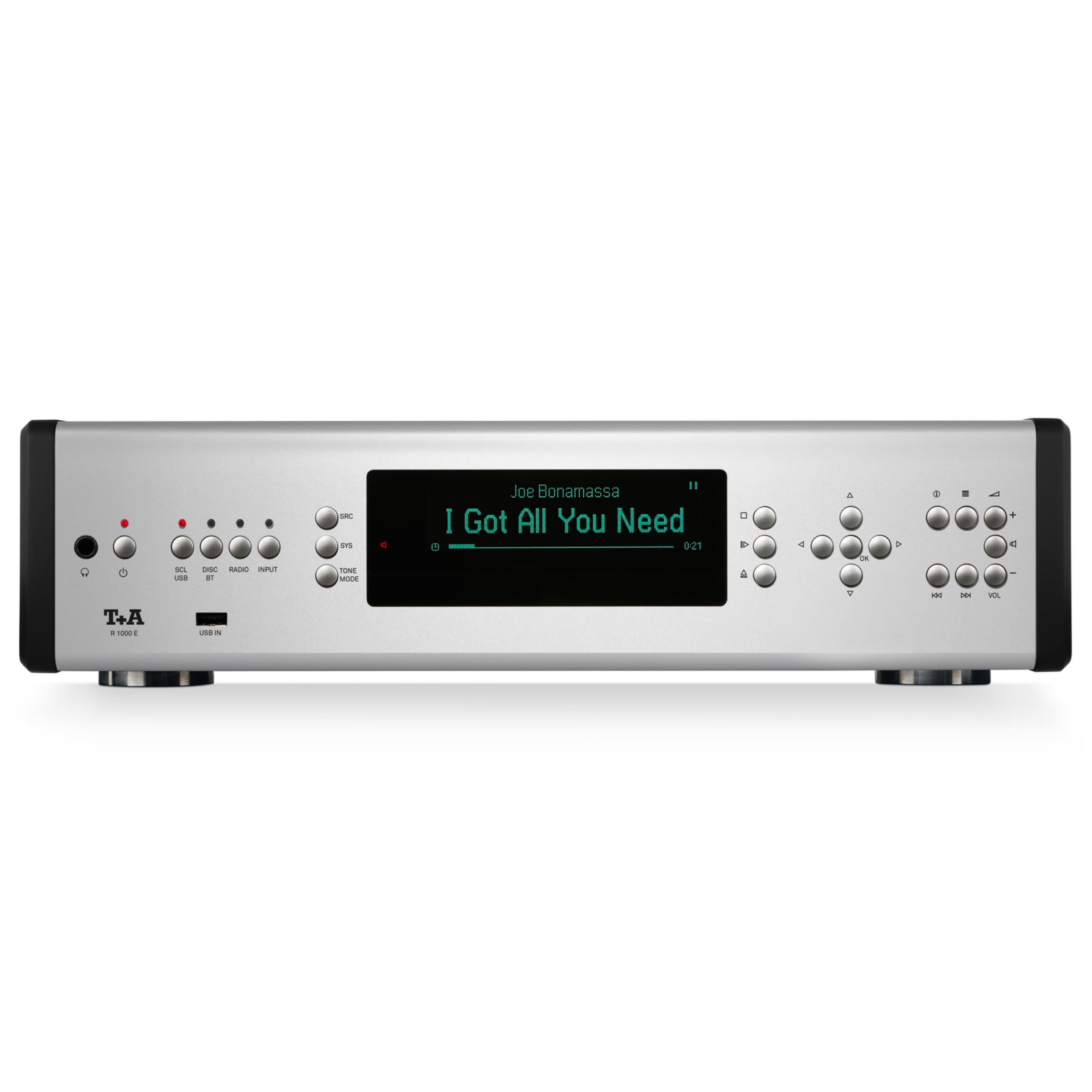

T+A Hi-Fi R 1000 E Multi Source Receiver
All T+A Hi-Fi Products are built to order with a 5 - 6 Week lead time.
This all-purpose device contains the genes of the superlative PA 1000 E and MP 1000 E separate devices. It is equipped with the very latest technologies and components, and certainly ranks as one of the most modern and innovative receivers available anywhere in the world. It combines classic analogue technology for the amplifier section with the latest digital circuit design for the internal sources. It also features a large number of extremely high-quality inputs for external analogue and digital sources, making it the perfect universal nerve center of a really modern, high-quality stereo system. It can cope with almost anything: you can connect a turntable (optional phono modules are available) or improve the sound of your television; connect a set-top box using an optical lead, or even stream music from a PC – there are no limits. What’s more, the R 1000 E caters for all formats, since its high-quality converter processes the audiophile DSD format as well as PCM files to very high standard.
Manufacturers Details:
The outstanding feature of this superb device is that we have equipped it with every available modern source: a high-quality CD mechanism, an aptX® Bluetooth module, a high-performance digital tuner, the Digital Connecting Board for external sources and our new High Res Streaming Client Board. This simply means that the R 1000 E can access everything which delivers music: CD, FM, FM-HD and DAB+ radio; Internet radio with Airable Internet Radio Service; UPnP network music servers; USB memory media; laptops and PCs, music services and mobile devices with Bluetooth!
Engineered With Care:
Conception
Key Features:
Digital Connecting Board
The outstanding 32-bit double-mono differential converter, the CD mechanism (without pushrods), the motherboard with Bluetooth module, the digital tuner and a new Streaming Client originate from the MP 1000 E. The R 1000 E also shares the same Digital Connecting Board for connecting external sources.

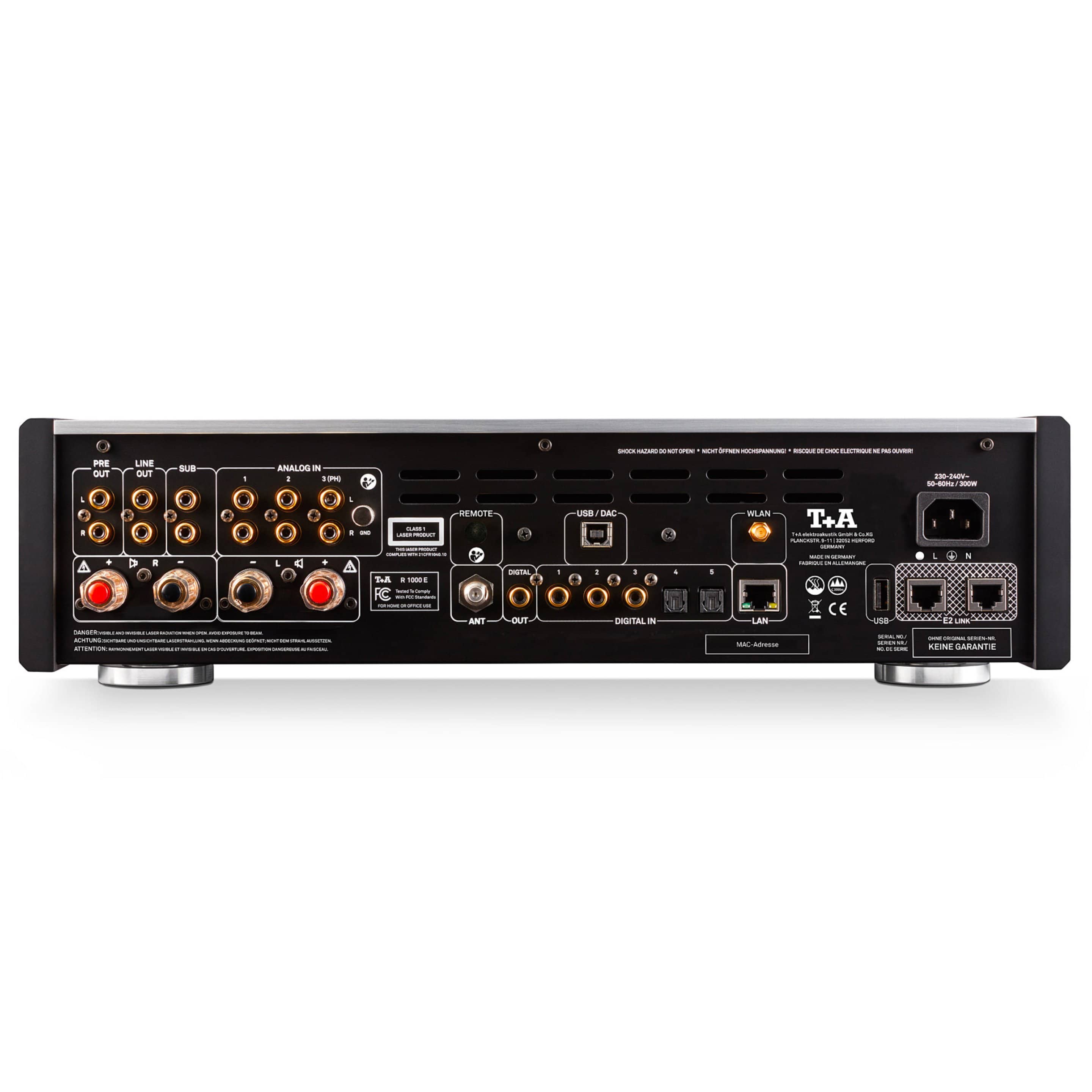

The R 1000 E is also fitted with three high-quality analogue inputs (one of them upgradable as a phono input), a pre-amplifier output for connecting active loudspeakers or additional power amplifiers, two sub-woofer outputs and a Line output, which can be used for applications such as a radio transfer module.
The output stages have been adopted from the PA 1000 E, with the same overall circuit design, albeit with slightly reduced power. The mains power supply and ancillary circuits are of the same design as those of the PA 1000 E.
The optional high-quality phono modules for MM or MC pick-up systems are those of the PA 1000 E, and can be retro-fitted at any time.
Specifications:
Audio data Output stage | |
Nominal output power per channel 4 Ohms / 8 Ohms: | 2 x 180 Watts / 2 x 115 Watts |
Peak output power per channel 4 Ohm / 8 Ohm: | 2 x 300 Watts / 2 x 180 Watts |
Frequency response -3dB: | 1 Hz - 60 kHz |
Total harmonic distortion: | < 0,004 % |
Intermodulation: | < 0,004 % |
Specifications preamplifier (PRE, REC) | |
Frequency response: | 1 Hz - 250 kHz |
Total harmonic distortion: | 0,0022 % |
Signal / noise ratio: | 106 dBA |
Channel separation: | > 90 dB |
Outputs | |
Analogue 3 x unbalanced (RCA): | PRE-, LINE-, SUB OUT 2,5 Veff / 50 Ohms; Headphones 6,3 mm plug > 32 Ohms |
Digital 1 x coax: | IEC 60958 (CDDA/LPCM) |
Inputs | |
Analogue 3 x unbalanced (RCA): | 250 mVeff ... 3 Veff / 20 kOhm, optional Phonomodule as PA 1000 E |
Digital Connecting Board | |
Inputs 2 x USB 2.0: | for USB storage/HDD. Formats: NTFS, FAT 16/32, Ext2 + 3 + 4 |
Inputs 1 x USB-B: | Class 2 Device Mode, asynchron, PCM 32...96 kHz, DSD64 (depending on Player-Software and operating system) |
Inputs 3 x coax S/P-DIF: | PCM 32...192 kHz |
Inputs 2 x opt. S/P-DIF: | PCM 32...96 kHz |
Output 1 x coax S/P-DIF: | PCM 32...192 kHz (IEC60958) |
CD-Player | |
Formats: | CD/DA,CD-R, CD-RW, CD-Text |
Frequency response: | 2 Hz - 20 kHz / 100 dB |
Bluetooth | |
Standards / Codecs: | A2DP (Audio), AVRCP 1.4 (Control) / aptX ® , MP3, SBC |
Streaming Client | |
Formats: | MP3 , AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC |
Data rates: | PCM 32...192 kHz,16/24 Bit; MP3 up to 320 kBit, constant and variable Data rate. |
Features: | Gapless Playback for MP3 (Lame), WAV, FLAC. T+A MusicNavigator App for iOS und Android |
Standards: | UPnP AV |
Services: | Tidal, Deezer, qobuz, Roon Ready (subscription required) |
Interfaces: | LAN: Fast Ethernet 10/100 Base-T, WLAN: 802.11 b/g/n |
D/A-Converter | |
D/A-Converter: |
32-bit, 384 kHz Sigma Delta, double-mono differential converter, switchable oversampling filters PCM 32...192 kHz; DSD 64 |
Analogue filter: | Symmetrical, phase linear Besselfilter 3rd order 100 kHz |
Frequency response up to PCM 192: | 2 Hz - 100 kHz |
Frequency response up to DSD 64: | 2 Hz - 80 kHz |
Tuner | |
Internet Radio: | Airable Internet Radio Service (> 11000 Stations world wide) |
FM, FM-HD: | 87,5 - 108 MHz; Sensitivity 1 µV; S/N > 65 dB |
DAB, DAB+: | 168 -240 MHz (Band III); Sensitivity 2,0 µV, S/N > 96 dBA |
Features: | RDS/RDBS, station name (PS), program type (PTY), Radio text (TR), clock |
Mains / Accessories / Dimensions | |
Accessories: | IR-Remote control SRC 1; WLAN Modul; Bluetooth aerial; power cord |
Remote control: | SRC1 |
Mains: | 220-230 V or 110-115 V, 50-60 Hz |
Power consumption max.: | 300 Watts |
Power consumption idle: | 22 Watts |
ECO-standby: | 0,3 Watt |
Auto power off function: | yes (after 90 minutes without audio signal) |
Dimensions (H x W x D): | 11,5 x 44 x 37 in cm |
Weight: | 13 kg |
Finishes: | Silver case + silver side panels. Black case + black side panels. |
Optional Accessories: | PHE MM/MC phono module | Power Three HD (Carbon) | Power Bar | Audio Duo (Carbon) | Speaker Hex (Carbon) IP-Control |
