Audio-Technica AT-OC9XEB Moving Coil Cartridge
Specifications
| Frequency Response | 20 - 30,000 Hz |
| Channel Separation | 25 dB (1 kHz) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | Min 100 Ohms |
| Coil Impedance | 12 Ohms (1 kHz) |
| DC Resistance | 12 Ohms |
| Coil Inductance | 25 μH (1 kHz) |
| Output Voltage | 0.32 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Stylus Shape | Elliptical Bonded |
| Cantilever | Aluminium pipe |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 9 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centers / Threaded inserts |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |

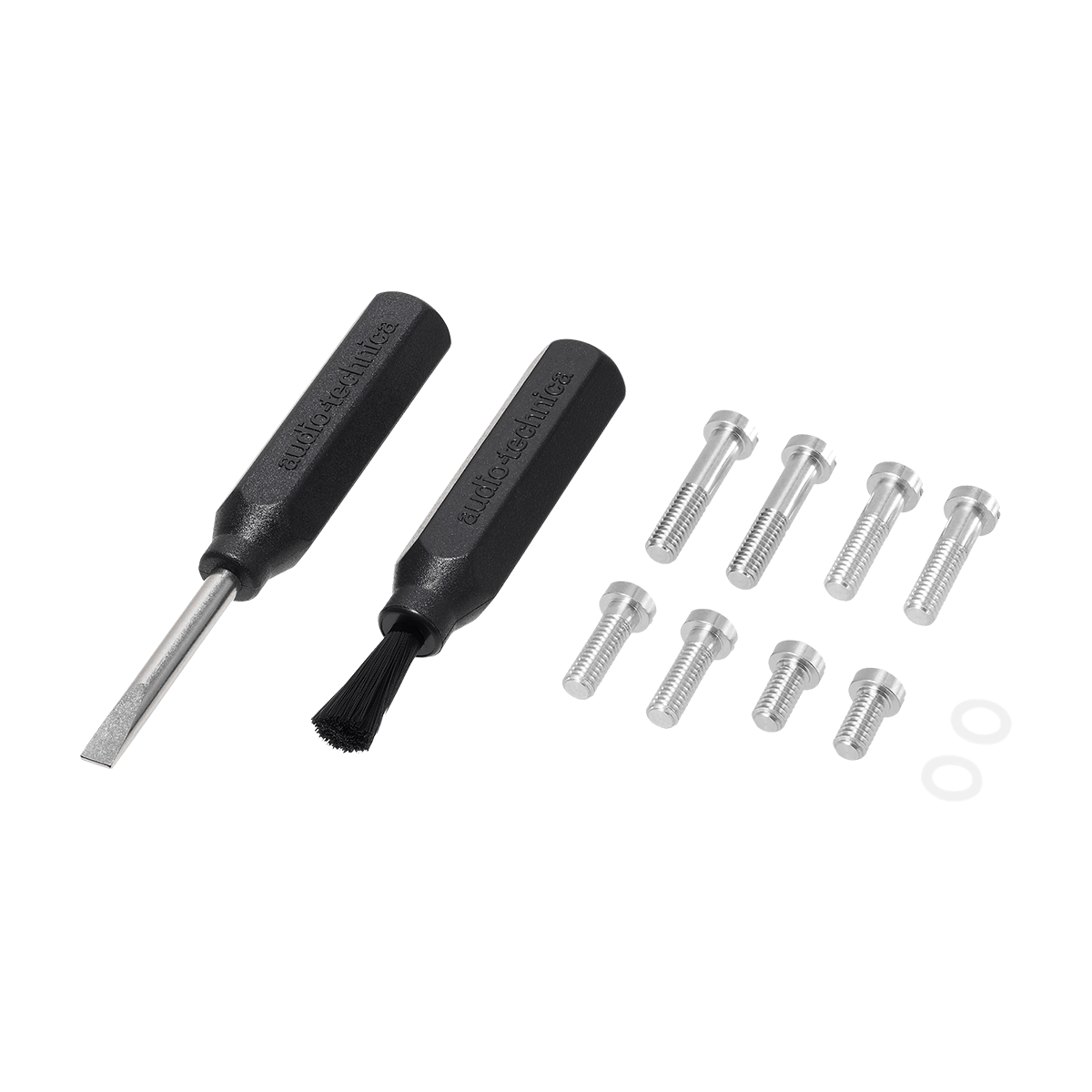

| Accessories Included | 1 non magnetic screw driver, 1 brush; 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
| Body Material | Aluminium |
| Model | AT-OC9XEB |
| Stylus Size | 0.3 x 0.7 mil |
| Terminal Pins | Brass |
| Weight | 7.6 g |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Audio-Technica AT-OC9XEB Series
The AT-OC9XEB Dual Moving Coil cartridge with bonded elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion. Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the bonded elliptical stylus on an aluminium cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
Features
The AT-OC9XEB Dual Moving Coil cartridge with bonded elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimising distortion. Audio quality is further enhanced by a rigid aluminium body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the bonded elliptical stylus on an aluminium cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.
