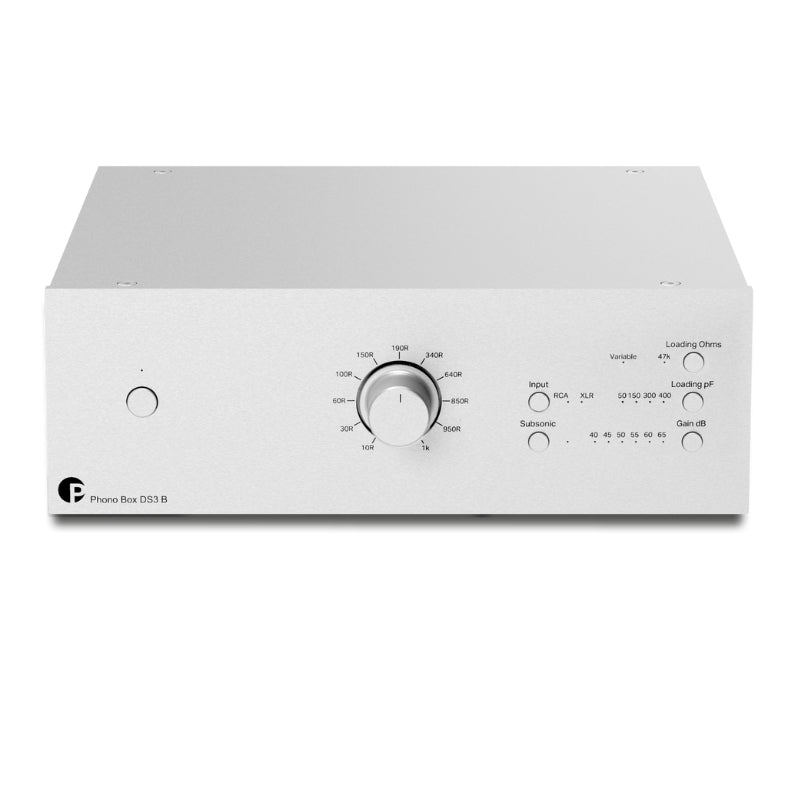

Pro-Ject Phono Box DS3 B Balanced Phono Preamplifier
Specifications
| Input impedance: | Stepless 10 – 1000 ohms or fix 47kOhms |
| Input capacitance: | 50, 150, 300, 400 pF |
| Gain (+ 6dB using XLR Out sockets): | 40, 45, 50, 55, 60, 65 dB |
| Signal / Noise ratio MM (40dB): | 104dBV, 111dBV - ‚A‘ weighted |
| Signal / Noise ratio MC (60dB): | 85dBV, 91dBV - ‚A‘ weighted |
| THD at 1 kHz: | <0,001% MM, < 0,004% MC |
| THD (20Hz-20kHz): | <0,005% MM, < 0,01% MC |
| RIAA-equalisation curve accuracy: | < 0,25dB / 20Hz - 20kHz |
| Subsonic filter: | at 20Hz with 18dB/octave |

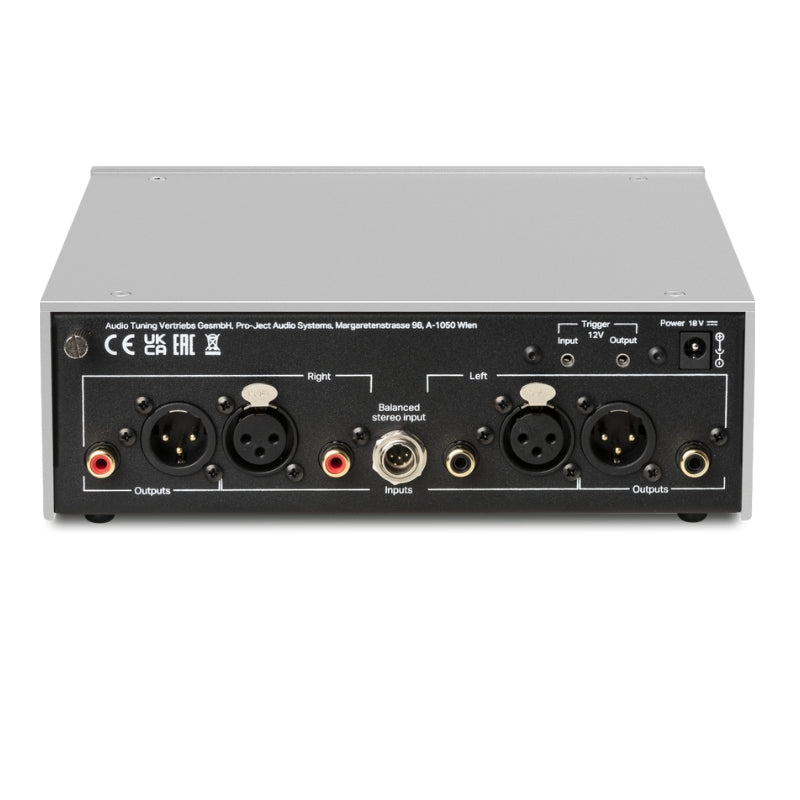

| Input: | 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono |
| Line-level output: | 1x pair RCA, 1x pair XLR |
| Wiring XLR sockets: | 1 ground, 2 “hot” and 3 “cold” |
| Trigger In/Out: | 12V on/off detector |
| Power supply DC: | 18V/500mA |
| Power consumption: | 18V/max.290mA DC, <0.5 W standby |
| Dimensions: | 206 x 72 x 194 (205 with sockets) mm |
| Weight: | 1480g without power supply |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Pro-Ject Phono Box DS3 B Balanced Phono Preamplifier
True Balanced, Dual Mono & Fully Discrete Audiophile Phono Stage
Balanced connections were exclusive to Pro-Ject's RS range of products until now.
The Phono Box DS3 B offers some of the high-end features of the Phono Box RS2 at an affordable price with astounding sonic quality. It features the 'True Balanced Connection', which, in combination with a Pro-Ject turntable with a 5-pin balanced output and 5P to XLR cable, can achieve a totally balanced connection, minimising noise and delivering a breathtaking analogue signal.
Manufacturer Details:
True Balanced
Unleash the full power
Connect your Phono Box DS3 B Balanced Phono Preamplifier with a True Balanced Phono Cable to your X2 B Turntable and benefit from an interference-free signal with increased dynamics & lower noise level.
High-End Features and Limitless Loading Options

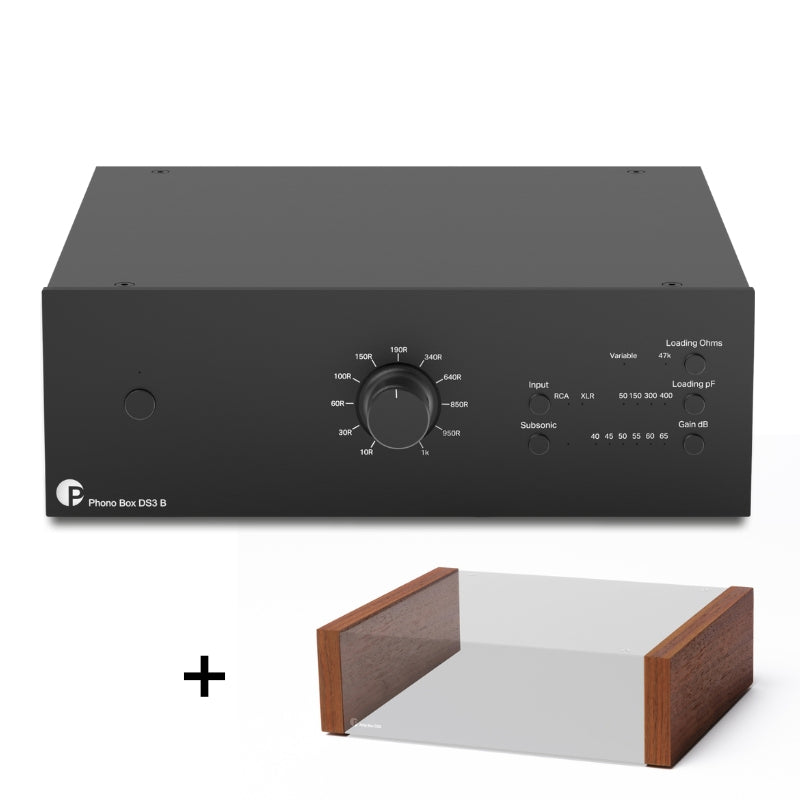

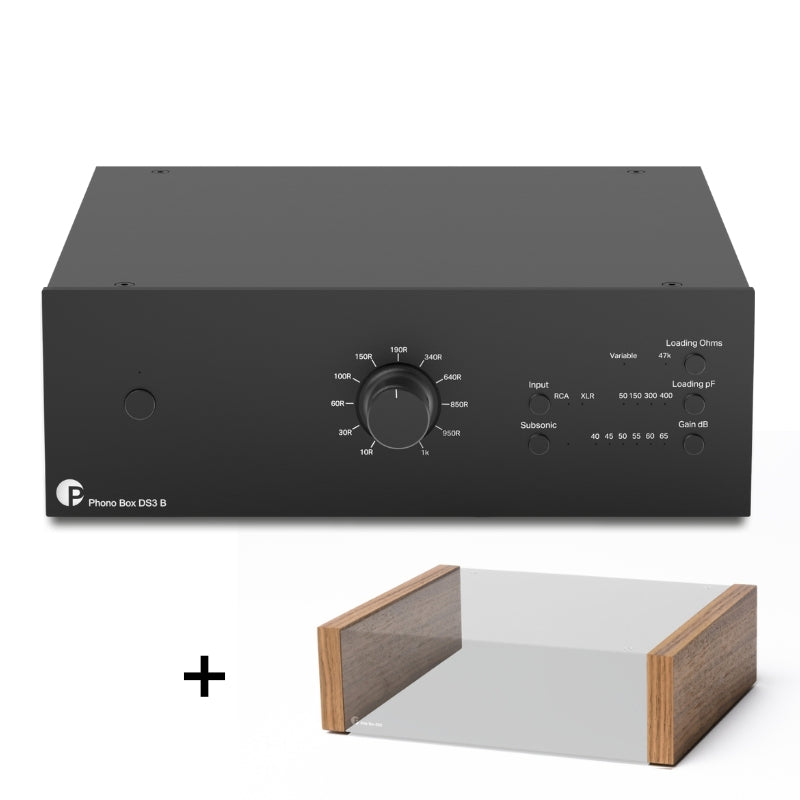

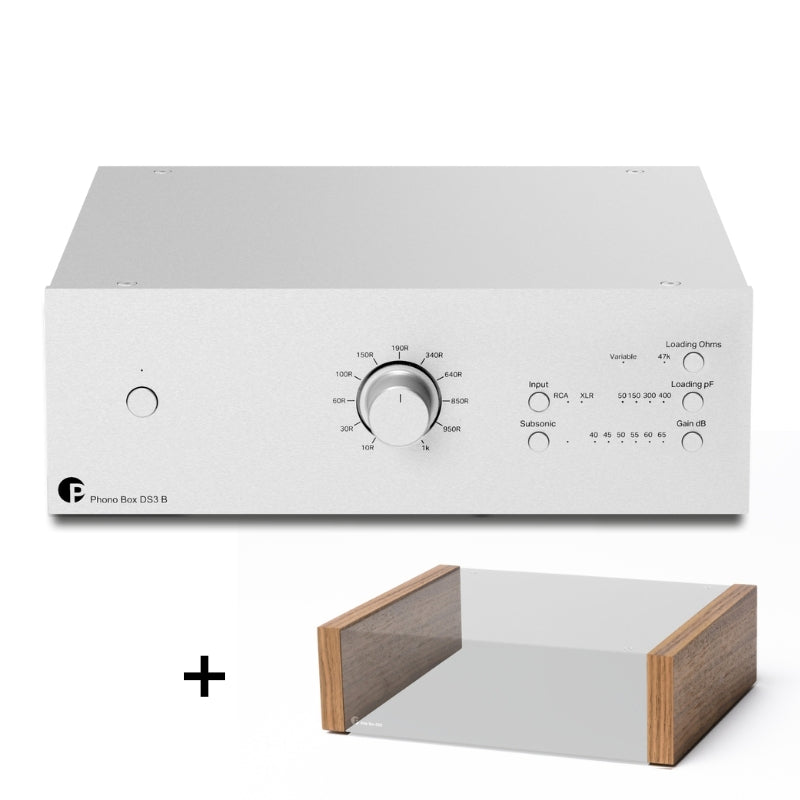

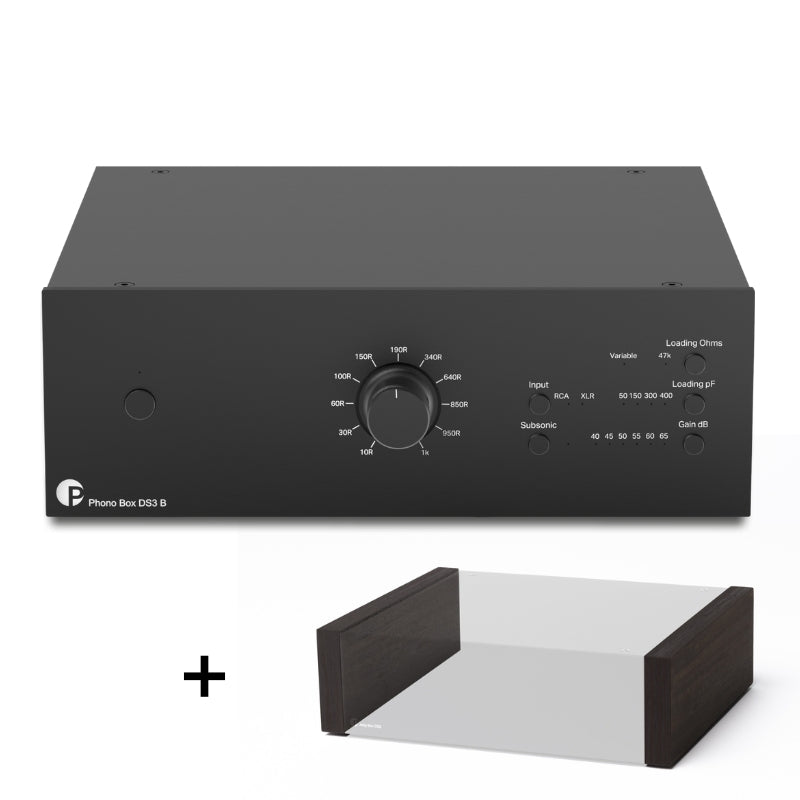

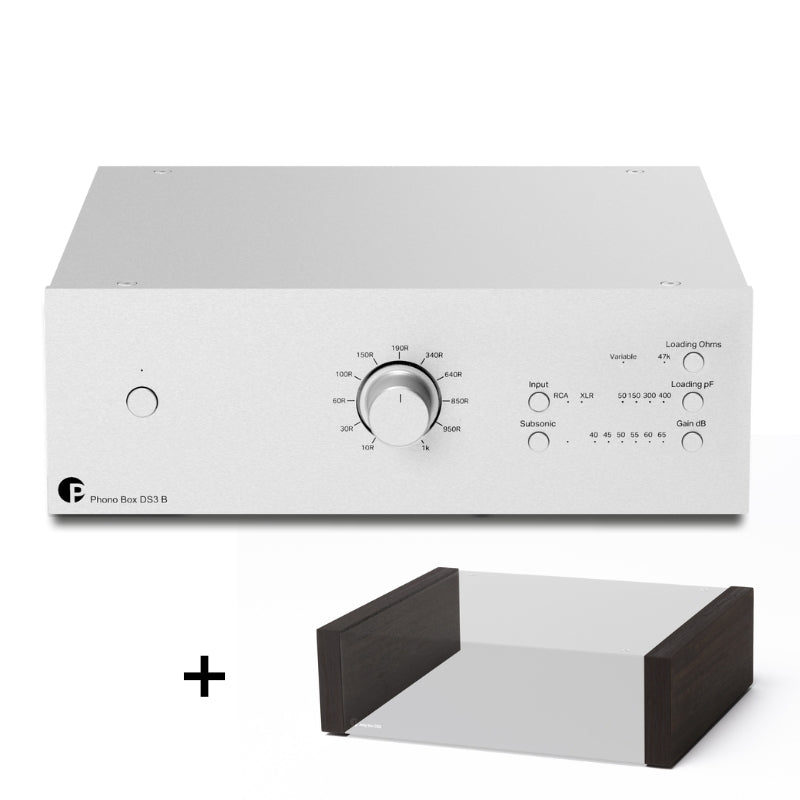

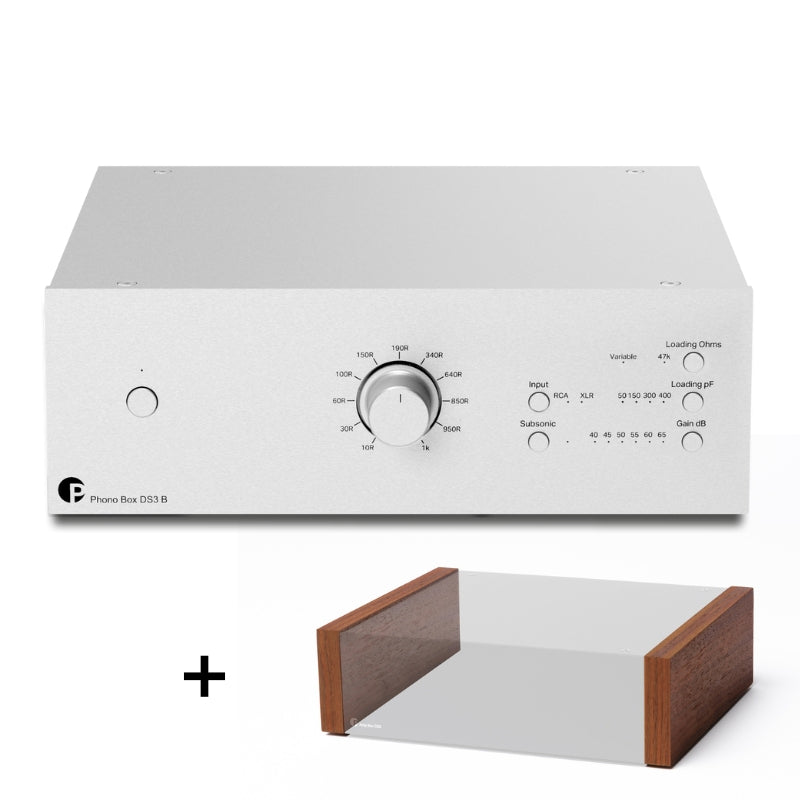

The Phono Box DS3 B employs a steel chassis enveloped by aluminium panels. This construction offers very high rigidity and isolation against interferences, which is essential for the new technology inside. Magnetic wooden side panels are available separately as add-ons. You can connect up to two turntables simultaneously – all parameters for each input are stored in the unit.
The Phono Box DS3 B perfectly matches to a wide variety of cartridges in real time. Load impedance can be set continuously via a potentiometer, a system invented by Pro-Ject Audio Systems, to adjust the impedance during playback and assess the impact of different loading options in real-time. No other manufacturer implements this feature as elegantly.
A Technical Deep Dive
The Phono Box DS3 B incorporates a true, fully balanced gain stage design. Whether you're using a single-ended RCA or balanced connection, the fully symmetrical gain stage can optimise the signal-to-noise ratios, feeding the fully passive and discrete RIAA equalisation stage with the cleanest signal to work its magic on.
Entirely split, passive equalisation allows for better impedance matching and lower deviation from the ideal RIAA curve. The Phono Box DS3 B also uses fully discrete audio circuitry. A discrete circuit is composed of disparate, individual electronic components, also called discrete components. Years of experience have proven that even the best Op-Amps do not come close to the neutral, natural, dynamic, and vivid presentations of discrete circuits.
Gabi Recommends:
Are you wondering what cables you should get with your new True Balanced phono stage? Here's a simplified rundown of what I recommend.
Connecting the Pro-Ject X2 B or X1 B turntable
The Connect It S Mini XLR > Mini XLR cable or the Connect It DS Mini XLR > XLR will both work in this connection. With the Mini XLR connection at the turntable and the Mini XLR or XLR connection at the phono stage.
Connecting a regular turntable
The Connect It E RCA > Mini XLR cable is ideal for connecting a regular turntable to the Pro-Ject Phono Box DS3 B or the Phono Box S3 B. With the RCA connection at the turntable and the Mini XLR connection at the phono stage.
Connection to an amplifier
If the amplifier has XLR inputs, we highly recommending using this connection (XLR > XLR). Check our our full range of XLR cables to choose the right level of product for you.
Get the most from this product as well as heaps of great tips and tricks from our article - '5 Tips For Getting The Best Out Of Your Turntable'
