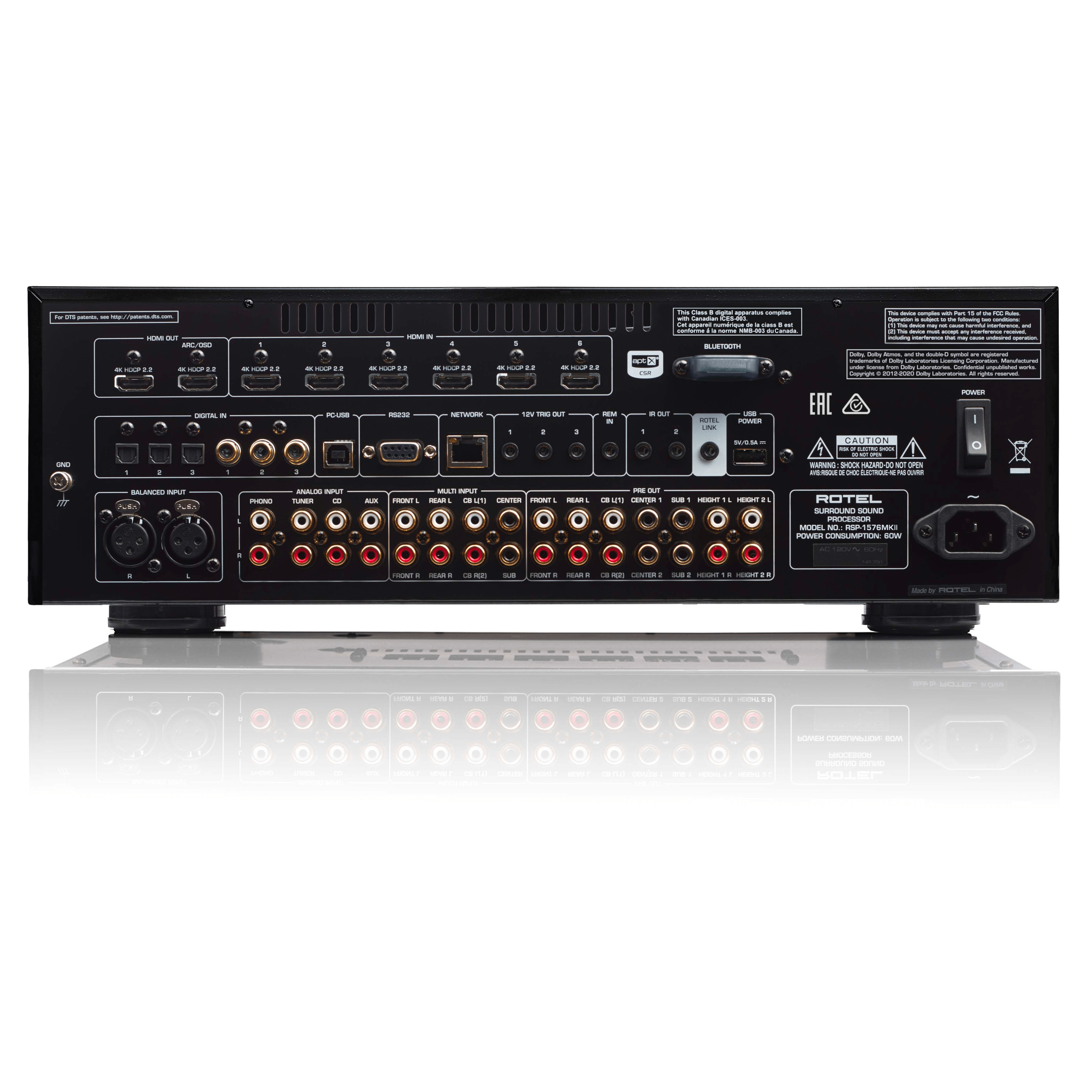

Rotel RSP-1576MKII 7 Channel Surround Processor
Specifications
| DIMENSIONS (W × H × D): | 431 × 144 × 348mm |
| FRONT PANEL HEIGHT: | 3U / 132.6mm |
| POWER REQUIREMENTS: | 120V, 60Hz |
| POWER CONSUMPTION: | 60w |
| STANDBY POWER CONSUMPTION: | <0.5W |
| NET WEIGHT: | 8.8kg |
| BTU RATING: | 114 BTU/h |
| TOTAL HARMONIC DISTORTION (THD): | Analog Bypass: 0.0006%Digital Inputs: 0.003% |
| FREQUENCY RESPONSE: | Analog Bypass: 10Hz - 100kHz, ±1dBDigital Inputs: 20Hz - 20kHz, ±0.5dBPhono Input: 20Hz - 20kHz, ±0.5dB |
| S/N RATIO (IHF | Analog Bypass: 112dBDigital Inputs: 112dB |
| INTERMODULATION DISTORTION (60Hz:7kHz, 4:1): | <0.005% |
| VIDEO INPUT RESOLUTIONS: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p/24Hz, 3D, 4K, UHD, 4K 60Hz, 4K HDR10 |
| DIGITAL AUDIO: | LPCM (up to 192kHz, 24-bit), Dolby Surround, Dolby TrueHD, Dolby ATMOS, DTS-HD Master Audio, DTS:X, Dirac Live Full |
| INPUT SENSITIVITY: | Line Level Inputs (RCA): 270mVLine Level Inputs (XLR): 500mVPhono Input (MM): 3.5mV |
| VIDEO OUTPUT RESOLUTIONS: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p/24Hz, 3D, 4K, UHD, 4K 60Hz, 4K HDR10 |
| HDMI INPUTS/OUTPUTS: | 7 inputs supporting HDCP 2.2, HDMI 2.0b2 outputs supporting HDCP 2.2, HDMI 2.0bAudio Return Channel |
| INPUT IMPEDANCE: | Line Level Inputs (RCA): 100kΩLine Level Inputs (XLR): 100kΩPhono Input (MM): 47kΩ |
| COLOR SPACE SUPPORT: | sRGB, YCbCr 4:2:2, YCbCr 4:4:4 |
| PREOUT LEVEL: | Line Level: 1.0V |
| DEEP COLOR SUPPORT: | 24-bit, 30-bit, 36-bit |
| CHANNEL SEPARATION: | >75dB |
Warranty
Shipping & Returns
We offer free shipping on any product over $99. For full details please see our Shipping Policy.
Our returns policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we may not be able to offer you a refund or exchange. For full details please see our Refund Policy.
Rotel RSP-1576MKII Surround Processor
The RSP-1576MKII has been custom engineered for music and movie lovers alike supporting 7.1.4 Dolby Atmos and DTS:X in vivid resolution. Replete with features including 14 audio inputs, 7x2 HDMI 4K/HDR video connections, and fully licensed Dirac Live room correction this processer is sure to bring countless hours of entertainment.
Manufacturer Details:
The Rotel RSP-1576MKII has been custom engineered for music and movie lovers alike utilizing nearly 6 decades of design experience. This high-performance multi-channel pre-amplifier decodes audio formats up to 7.1.4 Dolby Atmos and DTS:X in vivid resolution and exceptional clarity.
The 14 audio inputs include analog, digital, apt-X Bluetooth, PC-USB and even a Moving Magnet Phono stage for vinyl lovers. All 7 of the HDMI inputs and the dual outputs support 4K/HDR.
A state-of-the-art quad-core Texas Instruments DSP feeds an array of 6 individual audiophile grade Wolfson 24bit/192KHz DACs performing the critical Digital to Audio conversion. The circuit topology coupled with meticulous selection and placement of each component ensures the RSP-1576MKII maintains the energy of a blockbuster movie yet able to reproduce the subtle nuances and details of an orchestral concerto.
Engineered With Care:
The RSP-1576MKII includes Dirac Live Full room correction utilizing proprietary time-domain and amplitude correction algorithms ensuring a truly uniquely, pristine listening experience regardless of theater size.
Setup and configuration are available via the HDMI OSD and on the front panel display. RS232 and Ethernet ensure's compatibility with all popular control systems.
Supported by a full lineup of Rotel amplifiers the RSP-1576MKII is sure to provide countless hours of entertainment.
Key Features:
-
Supports Dirac Live Full
-
Decodes DTS:X
-
Supports Dolby Atmos
-
Bluetooth with aptX
-
Moving Magnet Phono Input
Manufacturers Warranty & Specifications:
Rotel RSP-1576MKII Surround Processor Warranty - All products, excluding accessories, are covered by warranty for 3 years from the date of purchase. Find out more here.
