Rotel RMB-1585 Multi-channel Power Amplifier


  • Sale
  • Regular price $4,699.00

Living Entertainment North Coast

Rotel RB-1585 Multi-channel Power Amplifier

The pinnacle of performance in Rotel's superb multichannel power amplifier range, the RMB-1585 features 5 x 200 Watts to drive even the largest home theater speaker systems.

Manufacturer Details:

The RMB-1585, Rotel’s new flagship theater amplifier, provides both the massive power and sonic sophistication required by the finest home theater systems.

With five channels, each capable of producing 200 continuous watts each into 8 ohm loads (a full kilowatt of output power!), the RMB-1585 masters any A/V system regardless of speaker load or room size.

But it isn’t just pure output power that distinguishes the RMB-1585. It’s the ability to reproduce both the dynamics of a Hollywood blockbuster and the musical nuances of acoustic instruments that sets it apart.

Where does this balance come from? It’s a direct result of Rotel’s celebrated Balanced Design Concept in which circuit topology and parts selection meld in the pursuit of sonic excellence.

As with all Rotel products, this performance level begins with a power supply based on Rotel-designed and –manufactured dual toroidal transformers. In addition to providing proper voltages and current to subsequent rectifiers, regulators, and capacitors, these transformers also serve as a critical first stage of filtration for incoming AC power. And the toroid shape itself tightly focuses stray emissions to avoid their potentially negative impact on sound quality.

Engineered With Care:

Also in evidence is the Slit-Foil capacitor, an improved variant of a conventional storage device. The Slit-Foil is named after the many precise cuts made in the aluminum conductors. These cuts or “slits” minimize the eddy currents that reduce a conventional capacitor’s ability to store and supply energy efficiently. The power supply of RMB-1585’s output section benefits from eight British-made BHC Slit Foil caps, each with a capacity of 15,000 µF. And each channel uses six individual power transistors to ensure stable power delivery to all speakers in the system even under the most demanding conditions. Dual fans provide more-than-adequate airflow for proper thermal dissipation.

These and other high quality components were carefully chosen for their significant contribution to better sound quality and then “tuned” to each other for even further aural improvements.

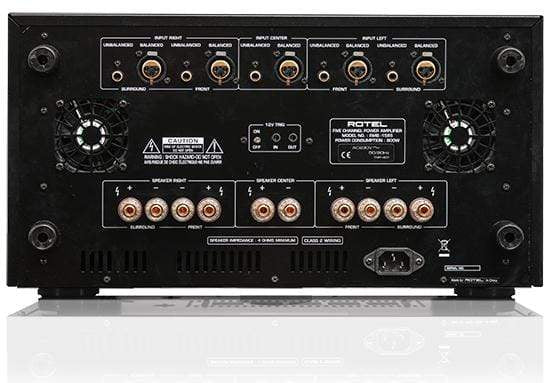

The RMB-1585 makes system connection easy with both single-ended inputs via RCA jacks or balanced connections via three-pin XLR connectors.

In summary, you could describe the RMB-1585 as a “brute” that provides a full kilowatt of power. Or you might regard it as an exacting conveyer of the most subtle aspects of music or a movie soundtrack. In either case, you’d be correct. You’d also be correct if you simply said that the RMB-1585 is the win-win answer for everyone seeking authoritative yet nuanced control of the speaker array of your choice.

Key Features:

  • 5 x 200 Watts of robust power
  • Class AB amplifier design
  • Massive power supply using Dual Toroidal Transformers
  • High quality slit foil capacitors made in Britain
  • Rack ears included

Manufacturers Warranty & Specifications:

Rotel RMB-1585 Warranty - All products, excluding accessories, are covered by warranty for 3 years from the date of purchase. Find out more here.

Specifications

DIMENSIONS (W × H × D) 431 × 237 × 454mm
FRONT PANEL HEIGHT 5U / 221mm
POWER REQUIREMENTS 120V, 60Hz
POWER CONSUMPTION 1100W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
36kg
BTU RATING (4Ω, 1/8th power)
2372 BTU/h
CONTINUOUS POWER OUTPUT 200W/Ch (All channels driven, 8Ω)
TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.03%
FREQUENCY RESPONSE
10Hz - 100kHz ±0.5dB
S/N RATIO (IHF "A" Weighted)
116dB
GAIN
26.5dB
