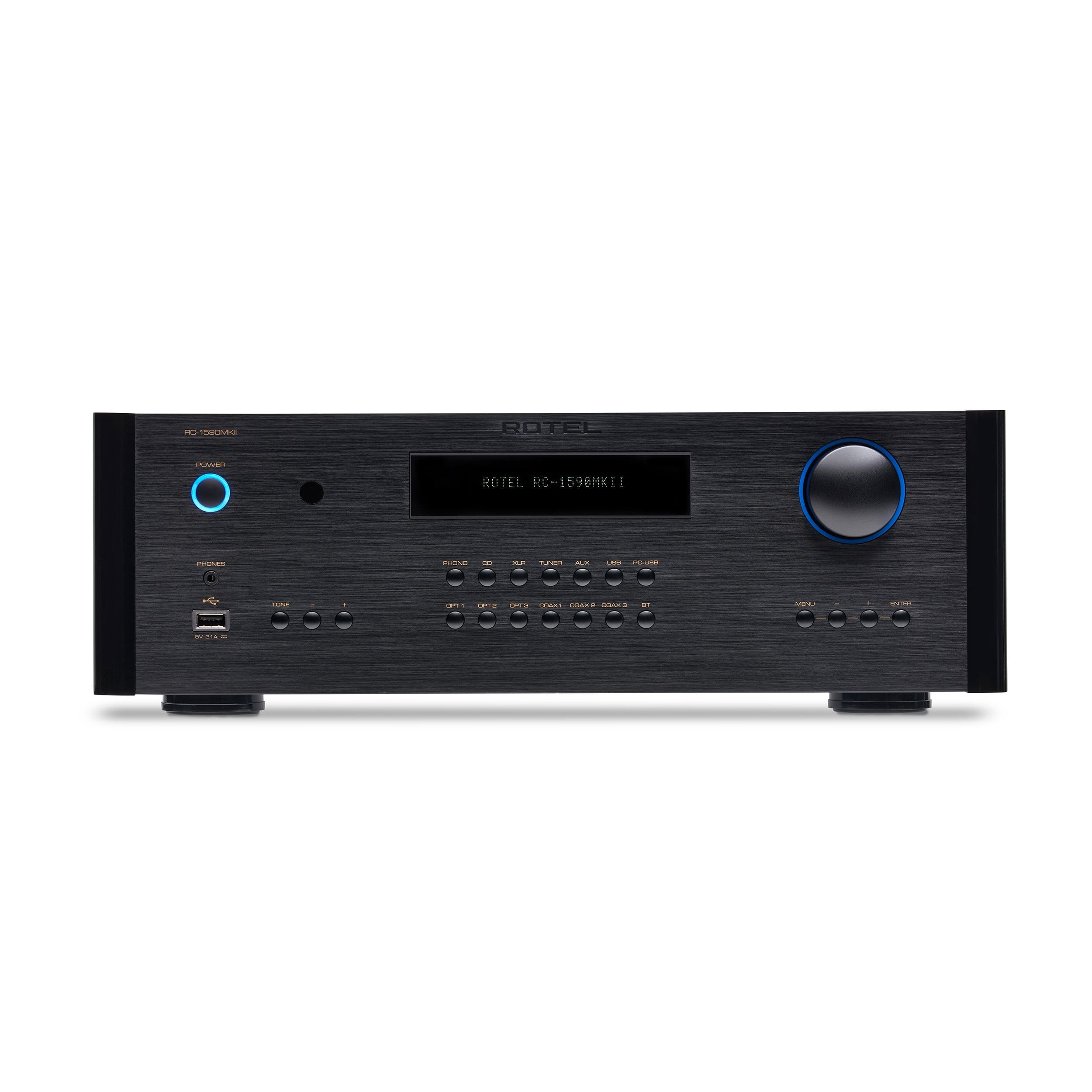

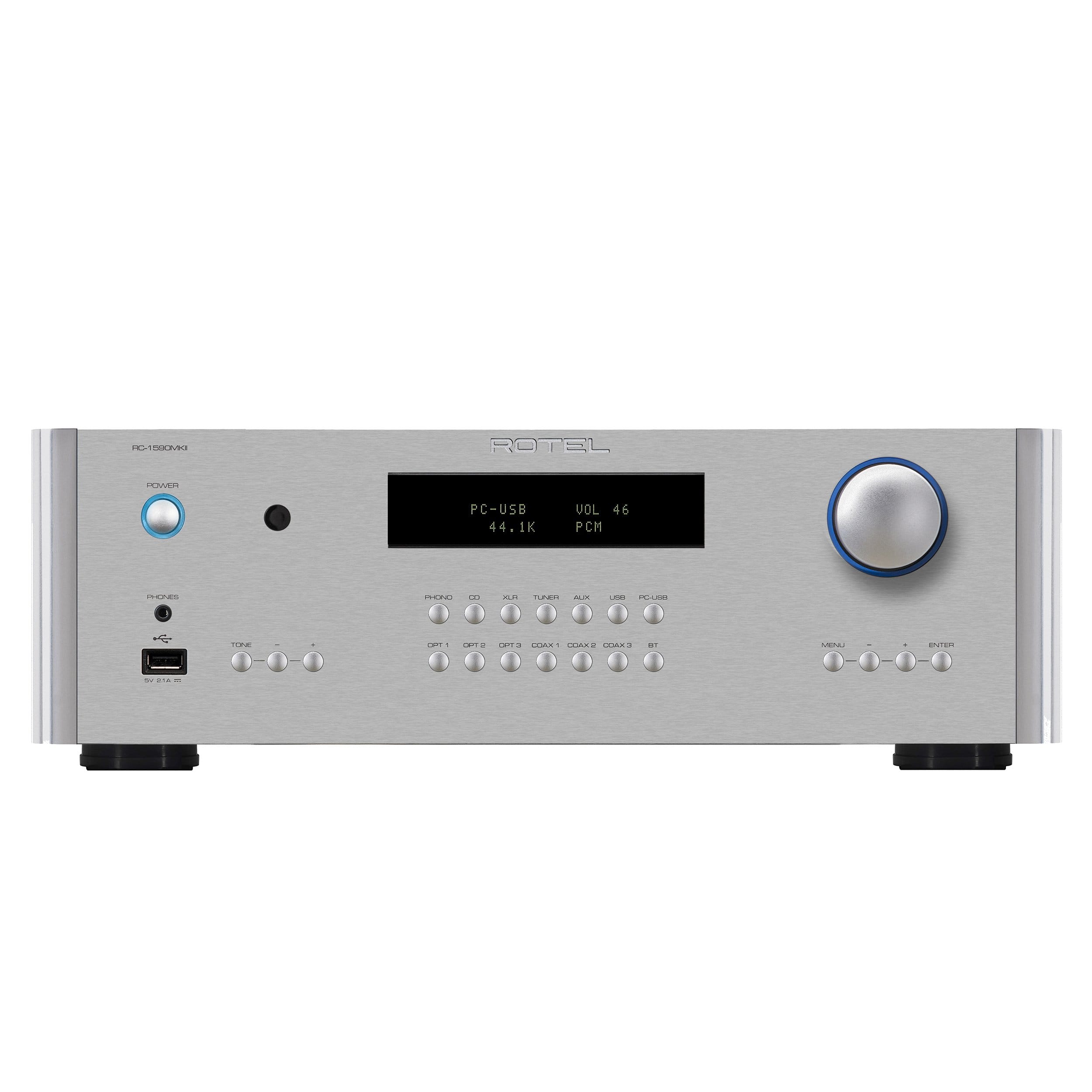

Rotel RC-1590 MKII Stereo Preamplifier
Reference audio systems deserve reference audio equipment. The Rotel RC-1590MKII is exactly that -- a reference preamplifier rendering analogue and digital sources with natural expression in a wide and open sound stage in stunning clarity.
Manufacturer Details:
The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufactured toroidal transformers. The transformers are physically and electronically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.
Digital source inputs are processed utilising an audiophile grade Texas Instruments 32-bit/384kHz Digital to Analogue Converter (DAC) with custom engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positing.
Engineered With Care:
Analogue signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.
The RC-1590 MKII supports a full array of inputs ensuring connection to your favourite sources including a Moving Magnet Phono input for vinyl lovers, Analogue, Digital, XLR Balanced, high quality aptXTM and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested.

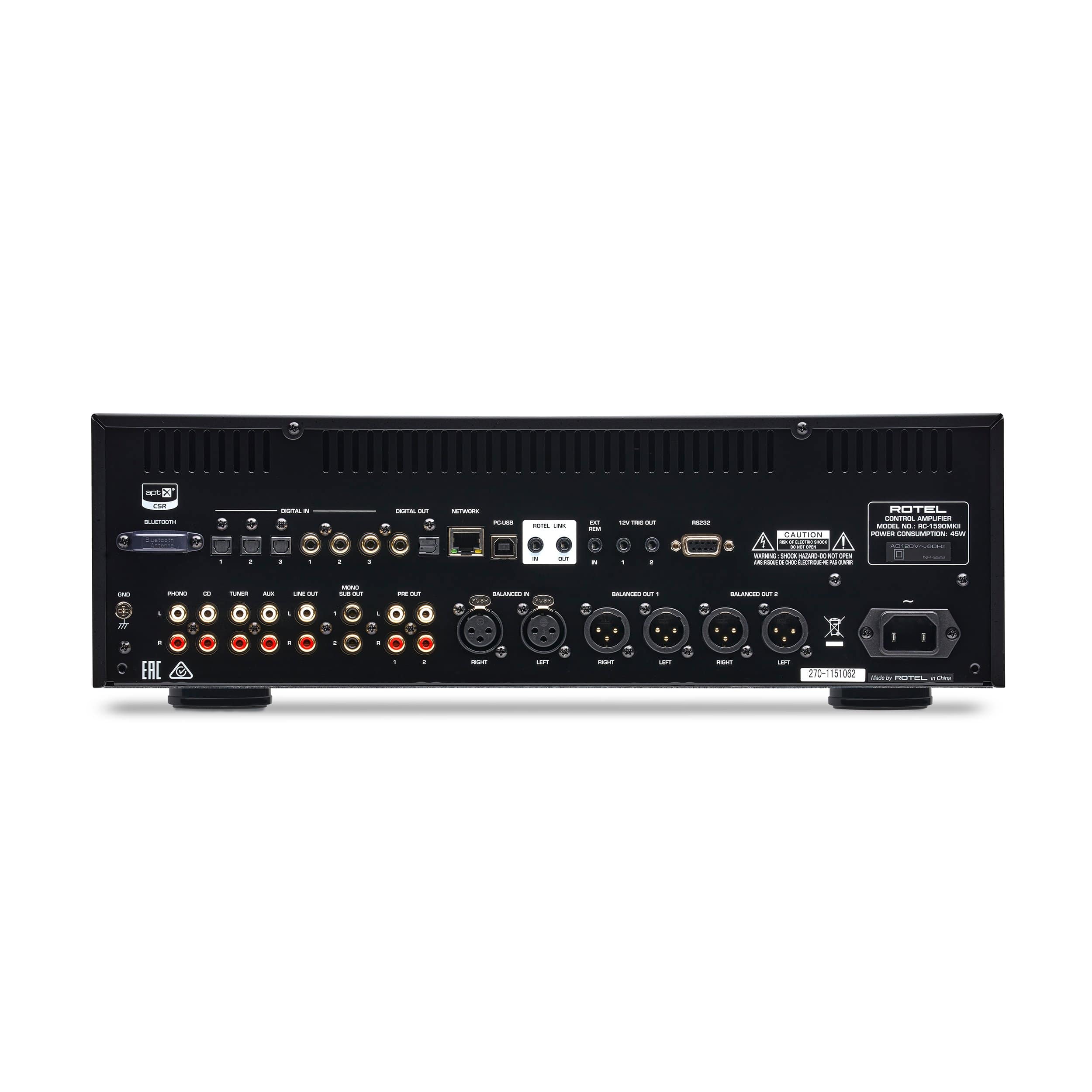

Dual RCA and XLR output connections provide the ultimate flexibility including bi-amplification installations. A subwoofer output is also included.
The RC-1590 MKII proudly continues Rotel’s 60-year legacy and heritage with ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590 MKII proudly represents this iconic brand.
Key Features:
- Balanced XLR inputs and outputs
- Moving Magnet Phono input for turntable connection
- Wireless aptX™ and AAC Bluetooth
- Texas Instruments premium 32-bit/384kHz Digital to Analogue Converter
- Supports MQA and MQA Studio
- Certified Roon Tested
Specifications:
Total Harmonic Distortion | |
(20 Hz-20k Hz): | < 0.002% |
Intermodulation Distortion | |
(60 Hz : 7k Hz, 4:1): | < 0.002% |
Input Sensitivity / Impedance | |
Phono Input (MM): | 2.5 mV / 47k ohms |
Line Level Inputs (RCA): | 150 mV / 100k ohms |
Line Level Inputs (XLR): | 250 mV / 100k ohms |
Input Overload | |
Phono Input: | 64 mV |
Line Level Inputs (RCA): | 4 V |
Line Level Inputs (XLR): | 5.5 V |
Output Level | |
Line Level (RCA): | 1 V |
Balance (XLR): | 2 V |
Frequency Response | |
Phono Input: | 20 Hz-20k Hz (+0.3 dB, -0.2 dB) |
Line Level Inputs (RCA): | 10 Hz-100k Hz (+0 dB, -0.1 dB) |
Line Level Inputs (XLR): | 10 Hz-100k Hz (+0 dB, -0.1 dB) |
Tone Controls | |
Bass: | ±10 dB at 100 Hz |
Treble: | ±10 dB at 10k Hz |
Signal to Noise Ratio (IHF “A” weighted) | |
Phono Input: | 80 dB |
Line Level Inputs (RCA): | 117 dB |
Line Level Inputs (XLR): | 115 dB |
Channel Separation | |
Phono Input: | > 85 dB |
Line Level Inputs (RCA): | > 85 dB |
Line Level Inputs (XLR): | > 75 dB |
Digital | |
Frequency Response: | 20 Hz - 20k Hz (0 ± 0.5 dB, Max) |
Signal to Noise Ratio (IHF “A” weighted): | 108 dB |
Input Sensitivity/Impedance: | 0 dBFs / 75 ohms |
Preamplifier Output Level: | 1.65 V (at - 20 dB) |
Coaxial/Optical Digital Signals: | SPDIF LPCM (up to 24-bit / 192k Hz) |
PC-USB: | USB Audio Class 1.0 (up to 24-bit / 96k Hz ) USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required MQA and MQA Studio (up to 24-bit / 384k Hz ) Roon Tested |
Power Requirements | |
Europe: | 230 V, 50 Hz |
USA: | 120 V, 60 Hz |
Power Consumption: | 45 watts |
Standby Power Consumption: | < 0.5 watts |
BTU: | 78 BTU/h |
Dimensions (W x H x D): | 431 x 144 x 348 mm |
Weight (net): | 10.1 kg |
