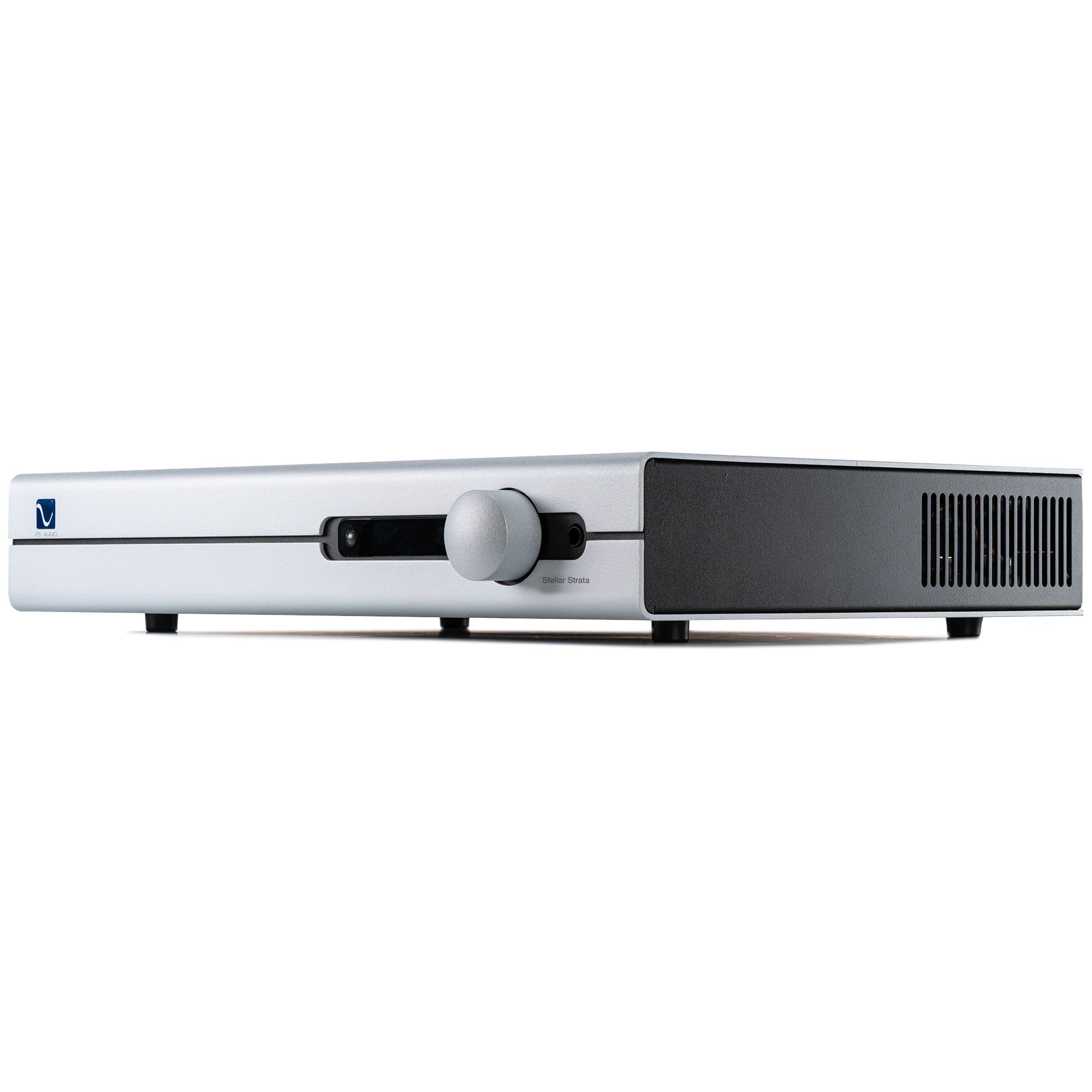

PS Audio Stellar Strata Streaming Amplifier
|Unit Weight||9.5 kg|
|Unit Dimensions||17” x 12” x 3”|
|Input Power||Model specific 100VAC, 120VAC, or 230VAC 50 or 60Hz|
|Power Consumption||20W idle50W typical600W Maximum|
|Mains Power Input||IEC C14|
|Fuses||T250V-250mAH (1/4A Slow Blow)|
|Accessories included||Remote ControlLine cord(s) US (NEMA 5-15P) (all versions)Schuko (CEE7/7) (230V version)UK (BS1363) (230V version)Australia (230V version)|
|RCAXLR||3 stereo pair1 stereo pair|
|Digital audio inputs|
|I2S||1 PCM (384KHz max)DSD64 DSD128Compatible with DirectStream Transport SACD handshake for DSD playback|
|Coax||2 PCM (192KHz max)|
|Optical||1 PCM (96KHz max)|
|USB||PCM (384KHz max)DSD64 (DoP) DSD128 (DoP)|
|Ethernet||Wired, 10/100MBPS1 WIFI, 2.4GHz 802.11b/g/nUPnP, Spotify Connect|
|Analog Audio Outputs|
|RCAHeadphonesSpeakers||(Analog Unbalanced) 1 stereo pairOne 1/4|
|GainMaximum outputSensitivity||12dB +/-0.5dB20 Vrms5.3Vrms|
|Input Impedance||47KΩ single ended RCA100KΩ Balanced XLR|
|Output Impedance||100Ω single ended RCA|
|Frequency Response||20Hz – 20KHz +0/- 0.25dB10Hz – 100KHz +0.1/-3.0dB|
|S/N Ratio||1KHz >110dB (max output)|
|Channel separation||1KHz >90dB|
|Input separation||1KHz >90dB|
|THD&IM||1KHz < 0.025%20-20KHz < 0.05%|
|Output power @1% THD||300Ω 300mW16Ω 3.25W|
|S/N Ratio 1kHzNoise||>95dB (max output)<-80dBV|
|THD & IM 1Vrms out||300Ω <0.05%16Ω <0.06%|
|Output impedance||<4 Ω|
|Power Amplifier Performance|
|Gain (relative to line output)||30.5dB|
|Output Power||8Ω, 1KHz, 1% 120W typical, 100W minimum|
|Output Power||4Ω, 1KHz, 1% 150W typical|
|Output Power||4Ω (one channel) 200W minimum|
|Frequency Response||+/-1dB 20Hz – 20KHz-3dB 7Hz – 40KHz|
|THD+N||1KHz, 10W/4Ω 0.02%|
|Speaker Impedance||4Ω minimum|
|Output Impedance||50Hz 150 mΩ typical|
|Sensitivity||@76 1.6VRMS@100 400m VRMS|
|Channel Separation||1KHz >90dB|
|Input Selection||9 total, 3 analog, 6 digital|
|PS Connect Streaming via free IOS or Android app||High resolution up to 192kHzTidalQobuzSpotifyNapsteriHeart RadioMusic Shares on local networkDLNA sources|
|Volume Control||0-100 (1/2 and 1dB steps, 80dB total range)|
|Balance Control||12dB each direction in 1/4dB steps|
|Home Theater Mode||Assignable to any analog inputAdjustable (in setup) to any level|
|Polarity (phase) Control||Digital sources only|
|Filter Control||3 selectable digital filters (PCM digital sources only)|
|Trigger output||(3.5mm 5-15VDC) 2|
|Remote Control||Yes. Infra Red|
|Network Connectivity||Ethernet or WiFi built in to Strata|
Shipping & Returns

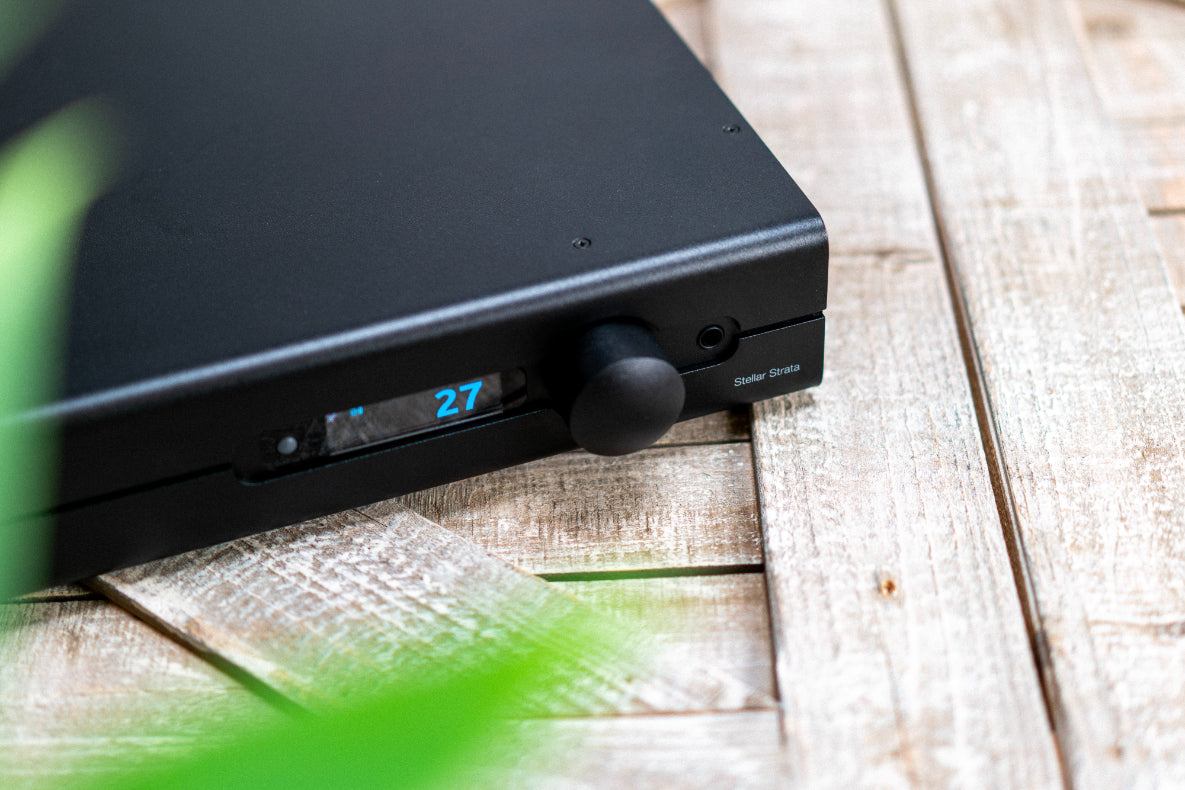

PS Audio Stellar Strata Streaming Amplifier
The Stellar™ Strata™ combines the benefits of an exceptional analog preamplifier, a full-featured state-of-the-art DAC, a stereo 150 watt per channel power amplifier, and a high-resolution streaming module in one gorgeous package. Just add speakers. Have your own source? No problem. Strata offers 3 analog and 5 digital inputs to connect whatever source you need. Strata’s fully balanced analog preamplifier circuitry, state-of-the-art DAC, no compromise high-definition streamer, and Analog Cell™ based power amplifier create an extraordinarily rich, full-bodied musical experience few products can match. The Stellar Strata is the perfect foundation for those unwilling to compromise sound quality. Rich. Lush. Powerful. A music lover’s answer to spiraling cost-no-object equipment without sacrifice.
Stellar Strata represents our finest all-in-one music component. Strata combines a state of the art analog preamplifier, Digital to Analog Converter, 200 watt per channel power amplifier, and high definition streaming services into one, gorgeous package.
Just add speakers. From day one of Strata’s development cycle, the engineers at PS Audio set out to craft a no-compromise all-in-one music reproduction system that was simple to use and breathtaking to hear. Connect to your home’s WiFi network, download the PS Connect App, and choose from millions of tracks available on Tidal, Qobuz, or Spotify.
Strata can stream high-resolution audio, or connect to any digital or analog source you wish. With its many digital and analog inputs, Strata is ready to rock!
All the features and functions you’d ever want in an analog preamplifier and modern DAC are right here in Strata. A zero-loss, fully balanced, pure, analog signal path combined with DAC features rarely found at any price level: pure DSD, asynchronous USB, Digital Lens technology, I²S to connect to our best transport, balanced throughout. Replace your preamplifier, your DAC, your power amplifier, and be stunned at the level of improvement when the full and rich tapestry of music surprises and delights your senses.
At the heart of Strata is its analog preamplifier section: the GainCell™. Invented in the early 2000s by PS Audio founder, Paul McGowan, this unique approach to variable gain amplification eliminates a classic audio performance problem caused by the volume control.
All preamplifiers must provide a means for the level to be turned up or down and all have something in common. They are elements inserted in the signal path that degrade the musical signal.
The GainCell solves the problem
Instead of inserting an additional level control in the signal path, the PS Audio Gain Cell relies on a different technology known as a variable gain amplifier.
The idea behind the GainCell is simple. Instead of adding additional circuitry to the signal path to vary loudness, the preamplifier’s actual amplifier stage varies its gain in response to the user’s front panel volume control. This method requires zero additional circuitry in the signal path, offers more than 80dB of attenuation, and if designed properly performs to the equal of high-end preamplifiers.
Strata has 100% analog input switching so users can select what they listen to without ever leaving the analog domain. Strata’s variable gain amplifier solves the problem of signal degradation from additional circuitry to control volume. Together, these pure analog technologies honor the signals passed through them, whether they’re from Strata’s internal DAC, streaming module, or an external phono stage, nothing in the music is sacrificed or lost. Music’s preserved in all its rich glory.
Rich, powerful, analog headphone amplifier
For those into headphones (and who isn’t?), Strata offers an exceptional sounding and powerful analog headphone amplifier on the front panel. Strata will automatically mute its main outputs when a headphone is plugged in and the listener can enjoy all that’s great with a high-performance set of headphones. This is music reproduced at its finest.
Engineered With Care:
The Digital To Analog Converter and high-resolution streaming module inside Strata will transform your expectations of what’s possible.
The DAC inside Strata produces a seamless 3D soundstage from even normal CDs. Labored over by its chief architect, Bob Stadtherr, and hand-tuned and voiced by Darren Myers, the improvement in sound quality over other DACs can be a revelation. The Strata DAC accepts inputs from any digital source including I²S, USB, TOSLINK, or Strata’s internal high-definition streaming module and outputs directly through Strata’s powerful amplifier directly to your loudspeakers.
Used with PS Audio’s Connect mobile app, available for IOS or Android, or music server software like JRiver, Bit Perfect, Amarra or Pure Music, Strata becomes your entry into the world of high-end digital audio music, both PCM and DSD. Performance is superb at anywhere near the price and there are good reasons why.
Digital Lens inside
All digital input signals are taken into Strata in Native Mode without Sample Rate Conversion (SRC) and fed directly into a simplified FPGA known as a CPLD (Complex Programmable Logic Device), which discovers sample rate and format, reclocks all incoming data, reduces jitter, waveshapes data output to the DAC chip, and utilizes high speed/low gate count logic to reduce propagation delay for faster throughput. This proprietary technology is called the Digital Lens.
The DAC chip itself is based around the acclaimed 32-bit ESS Sabre Hyperstream architecture, the output of which is passively filtered to reduce transient distortion.
Strata DAC’s output stage is a proprietary Class-A configuration, fully balanced and direct-coupled hybrid array with an extended bandwidth of 60 kHz.
I²S is the native format of all CD transports and many servers. I²S features a separate clock and data signal from the source. Typically, this clock and data signal are multiplexed together to be transmitted over a single cable in a format known as S/PDIF (Sony Philips Digital Interface), or AES/EBU (Audio Engineering Society/European Broadcast Union). Once received in multiplexed form, the DAC input must untangle the clock and data and once again separate them. I²S solves the problems associated with unraveling data of S/PDIF and AES/EBU formats.
Strata’s I²S inputs are compatible with our DirectStream Transport and allows full access to the master quality levels found on the locked SACD layer of SACD discs. Only PS Audio DACs, such as DirectStream, and now Strata, are authorized to play the pure DSD layer in all of its glory.
Choice of digital filters
Strata offers the choice of three digital filters for users to select from. Each digital filter has a different sonic character and the choice of filters offers an excellent means of improving system synergy. No filter choice is wrong or right. Instead, each filter can be selected and auditioned by the user to more perfectly match their chosen collection of the amplifier, source, and loudspeaker, as well as personal tastes and biases.
Users can relax and use the supplied remote control to audition each of the three filter choices for best audio quality matching the system it is played on. Should users upgrade their amplifier, speaker or sources at some point, Strata is there to help maximize performance.
Unique to Strata is PS Audio’s newest module, PS Connect. Used in conjunction with the PS Audio Connect app, available on IOS and Android devices, Strata owners can launch into the world of high-resolution streaming. Media with sample rates of up to 96kHz can be streamed directly into Strata’s internal Digital Lens to reduce jitter and improve streaming performance as never before.
PS Connect can stream from popular services such as Tidal, Qobuz, Spotify, Napster, and iHeart Radio, as well as any DLNA source on the home’s local network.
Connection to the home network is easy through Strata’s built-in WiFi or Ethernet connection.
