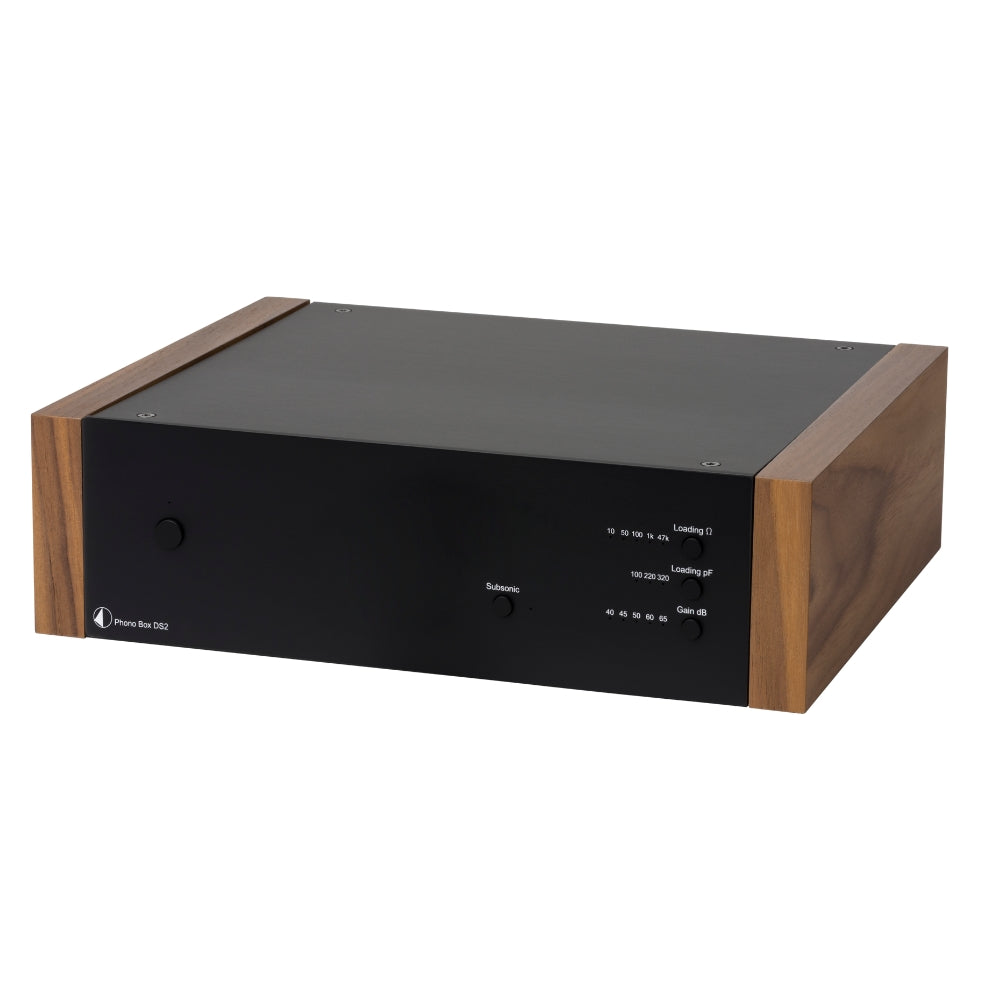

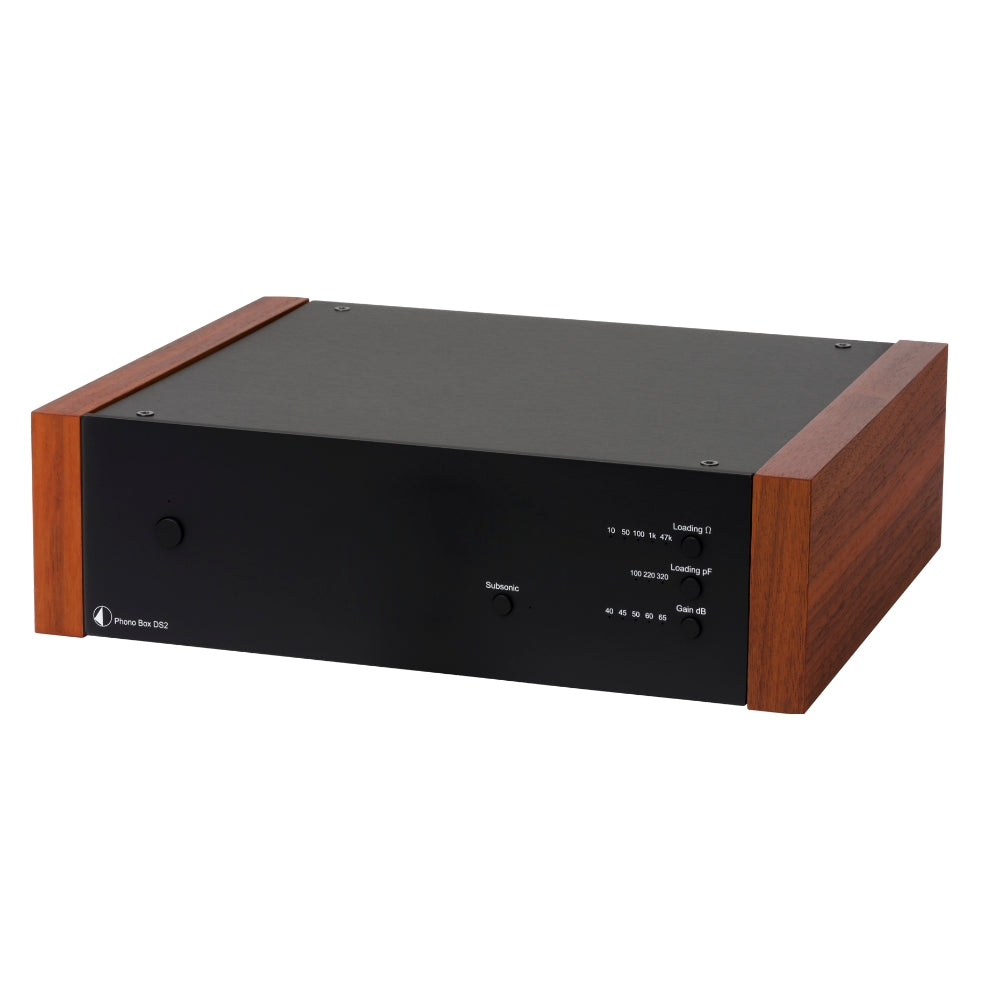

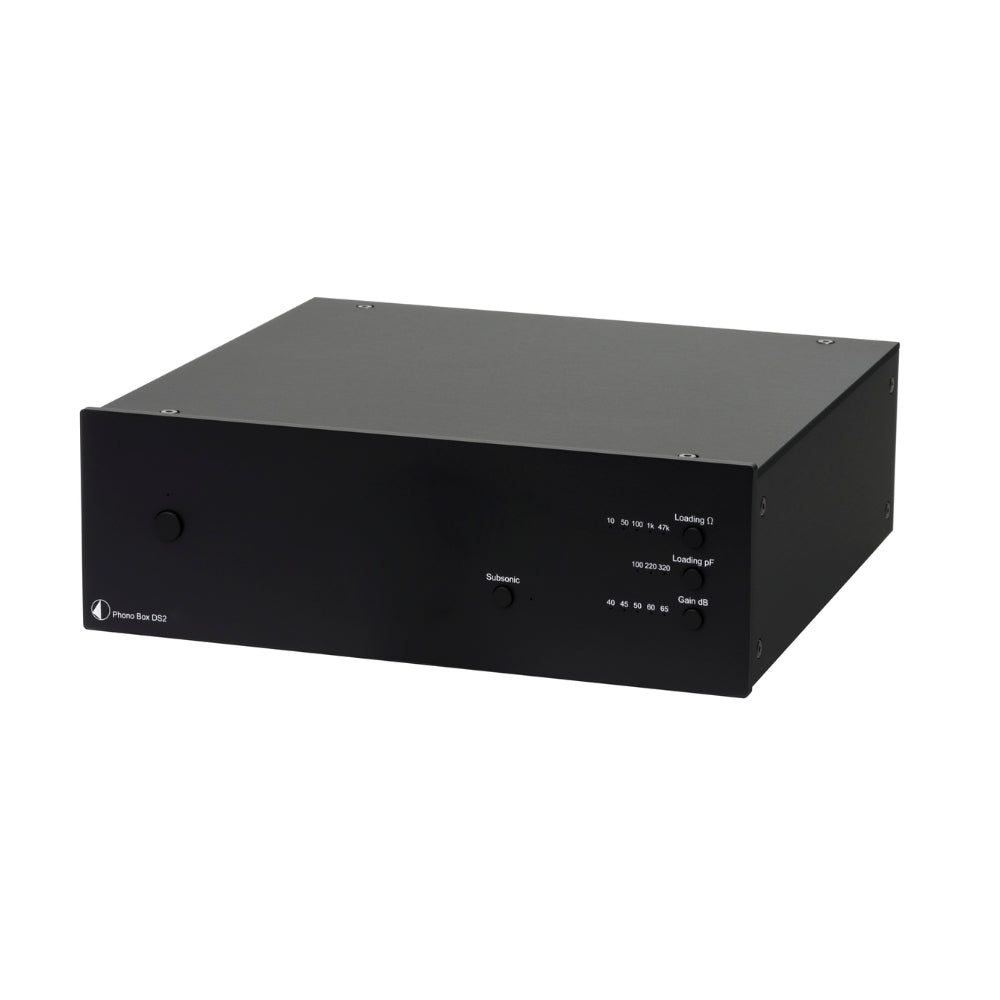

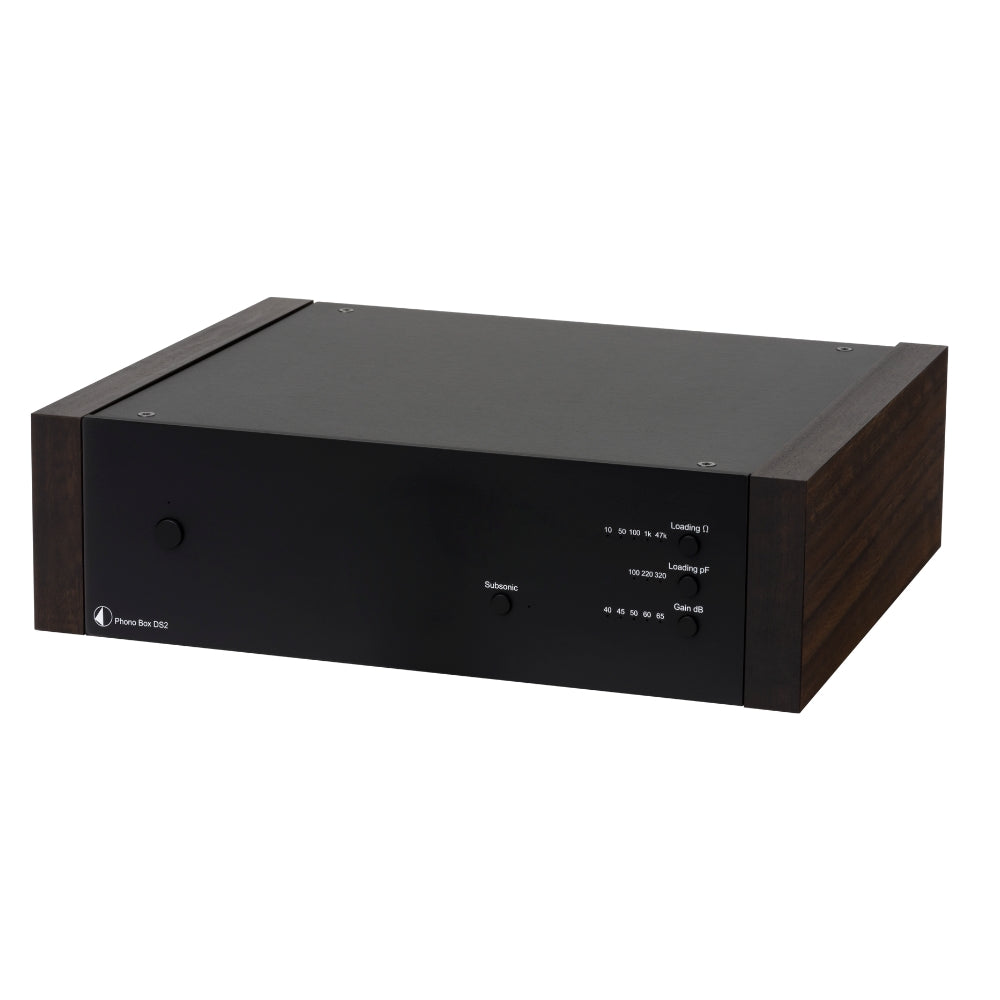

Pro-Ject Phono Box DS2 Phono Pre-amplifier
There are plenty of one-size-fits-all phono stages, which are great for a simple setup. But if you want to get the most out of your cartridge, and really hear what’s going on in the grooves, then you need a phono stage that’s much more adaptable.
Premium class phono preamplifier with MM & MC capability
Phono Box DS2 is a highly adjustable phono pre-amplifier suitable for all common MM and MC cartridges. With the ability to switch easily between input impedance and capacitance, as well as gain on front it becomes one of the most user friendly phono stages at this price point. It features one pair of RCA inputs for your turntable and one pair of RCA ouputs which will be conected to your pre-amplifier or integrated amplifier. The casing is made of a durable aluminium metal sandwich construction, which not only will effectively protect it against electromagnetic interferences and vibrations, but will also please the eye with its simply and elegant esthetics. Phono Box DS2 features a very linear circuit design to deliver the best possible sound from a minimalistic PCB. With its high value sonics and low cost price it becomes an audiophile bargain!
Engineered With Care:
Control at your fingertips
The Phono Box DS2’s front-panel control means you can fine-tune your sound as you listen, removing the guesswork and delivering you incredible new dynamics at the push of a button. With deep customisation options, the Phono Box DS2 is ready to help you rediscover your record collection.
- Suitable for MM and MC cartridges
- Precise RIAA equalisation
- Dual mono circuitry for optimized channel separation
- Selectable input impedance for MC
- Selectable input capacitance for MM
- Gold-plated RCA in & outputs
- Sandwich alu/metal casing protects from vibrations and electromagnetic interference
|Input impedance:||10-47 kOhm|
|Capacitance:||100/220 and 320pF|
|Output voltage:||500mV @ 1kHz (at 5mV input voltage @ 1kHz)|
|Noise floor:||- 80 dB V|
|RIAA equalisation curve accuracy:||Within 0.5dB/20Hz - 20kHz|
|Inputs:||1 pair RCA|
|Outputs:||1 pair RCA|
|Power supply:||18V/500mA DC; 110 - 240V, 50/60Hz|
|Power consumption:||100 mA DC, < 1 Watt standby|
|Dimensions W x H x D:||206 x 71 x 194 mm (Alu)
240 x 72 x 194 mm (Wood)
|Weight:||1320 g (Alu) without power supply
1770 g (Wood) without power supply
Get the most from this product as well as heaps of great tips and tricks from our article - '5 Tips For Getting The Best Out Of Your Turntable'
