POWER DEVICE |
Power Consumption Operational 900 Watt |
|
Power Consumption Stand by 0.1 Watt |
AUDIO SYSTEM |
Type AV network receiver |
|
Subcategory AV components |
|
Functions AV receiver, digital player, network audio player |
|
Media Content Source Bluetooth, Network, USB-host |
|
Audio Formats AAC, ALAC, DSD, FLAC, MP3, WAV, WMA |
|
Sound Output Mode Surround Sound |
|
Audio D/A Converter 24bit / 192kHz |
|
Built-in Decoders DTS Neural:X, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround, Dolby TrueHD, Dolby Vision |
|
Surround Sound Effects Audyssey DSX, Auro 3D |
|
Surround System Class 13.2 channel |
|
Digital Sound Processor (DSP) Yes |
|
Additional Features Audio Return Channel (ARC), Audyssey Dynamic EQ, Audyssey Dynamic Volume, Audyssey LFC, Audyssey MultEQ XT32, HDR color, HEOS wireless multi-room technology, Pure Direct mode, auto power off, compressed music enhancer, smartphone remote controlled, three-zone capability, upgradeable firmware |
|
Built-in Clock sleep timer |
|
High-Resolution Audio Yes |
|
Digital Content Protection HDCP 2.2 |
AMPLIFIER |
Output Channel Qty 13 |
|
Output Power (per channel) 150 Watt |
|
Input Impedance 47 Ohm |
|
Input Sensitivity 200 mV |
AMPLIFIER OUTPUT DETAILS |
Output Power / Channel 150 Watt, 190 Watt, 260 Watt |
|
Output Impedance / Channel 6 Ohm, 8 Ohm |
|
Frequency Response 20 - 20000 Hz, at 1 kHz |
|
Total Harmonic Distortion (THD) 0.05 %, 0.7 %, 10 % |
|
Channel Qty 1, 2 |
NETWORK & INTERNET MULTIMEDIA |
Functionality Internet radio playback, digital audio playback |
|
Connectivity Interfaces Bluetooth, Wi-Fi |
|
Internet Streaming Services Amazon Music, Deezer, Mood:Mix, Napster, Pandora, SiriusXM internet radio, SoundCloud, Spotify, TIDAL, TuneIn, iHeartRadio |
|
AirPlay Yes |
|
DLNA Yes |
AUDIO SPECIFICATIONS |
Type Amplifier |
|
Frequency Response 10 - 100000 Hz |
|
Signal-To-Noise Ratio 100 dB |
SIGNAL PROCESSING FEATURES |
Resolution 4K UHD (2160p) |
|
HDR Capable Yes |
|
HDMI Pass-Through up to 4K |
|
Video Conversion/Scaling HDMI to HDMI scaling, analog to HDMI up conversion |
|
3D Pass-Through Yes |
|
Upscaling via HDMI up to 4K |

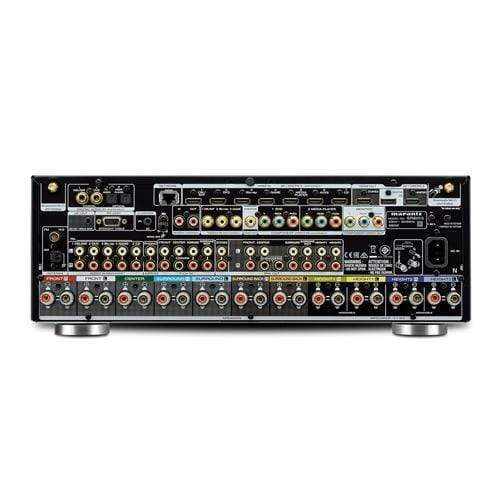

CONNECTIONS |
Type 15.2 channel audio line-out, 7.1 channel audio line-in, DC power output, Denon Link HD, HDMI input, HDMI output, SPDIF input, USB, audio line-in, audio line-out (multi zone), component video input, composite video input, composite video output (multi zone), headphones, monitor output, network, phono input, remote control input, remote control output, serial, speakers output, trigger |
|
Connector Type 19 pin HDMI Type A, 4 pin USB Type A, 9 pin D-Sub, RCA, RCA x 17, RCA x 2, RCA x 3, RCA x 8, RJ-45, TOSLINK, banana/spade x 2, phone stereo 6.3 mm |
|
Connector Location front, rear |
DIMENSIONS & WEIGHT |
Depth 19 in |
|
Width 17.1 in |
|
Height 7.7 in |
|
Weight 51.37 lbs |
SERVICE & SUPPORT DETAILS |
Type limited warranty |
|
Service Included parts and labor |
|
Full Contract Period 3 years |
SIGNAL PROCESSING FEATURES |
Upscaling via HDMI Up to 4K |
|
HDMI Pass-Through Up to 4K |
|
Video Conversion/Scaling Analog to HDMI up conversion, HDMI to HDMI scaling |
SERVICE & SUPPORT |
Type 3 years warranty |
